Universelle Docking-Lösungen der Enterprise-Klasse Die ThinkPad Hybrid USB-C Dock mit USB A erweitert die Möglichkeiten nahezu aller Laptops – ob alt oder neu. Sie ist die ideale Lösung für Großunternehmen mit gemischten PC- oder Shared-Desk-Umgebungen. Besonders in Großunternehmen erleichtert die Dock der IT-Abteilung ihre Arbeit, indem sie Verwaltungfunktionen wie PXE-Boot und das Durchschleifen der MAC-Adresse unterstützt. Sie bietet drei Highspeed-Anschlüsse vpm Typ USB 3.1 (Gen. 2) und Anschlussmöglichkeiten für bis zu zwei 4K/UHD-Bildschirme. Über die „Rapid Charge“-Funktion unterstützt sie zudem das schnelle Aufladen von ThinkPad Notebooks. Mit dem mitgelieferten USB-C-auf-USB-A-Adapter dient sie zudem als Portreplikator für Notebooks, die nicht von Lenovo stammen oder nicht über einen USB Typ C-Anschluss verfügen.

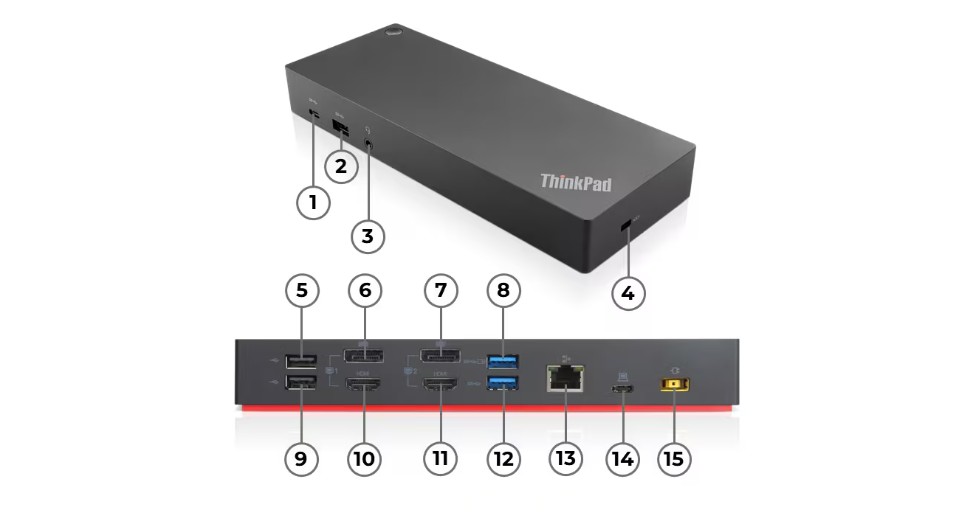

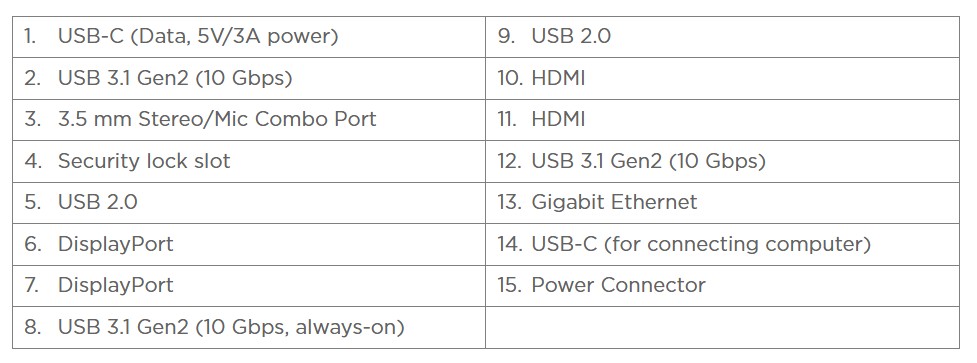

Schnittstellen:
2 x USB 3.1 Gen 2
1 x USB 3.1 Gen 2 mit Always-on-Ladefunktion
2 x USB 2.0
1 x USB 3.1 Gen 2 - USB-C
1 x Netzwerk - 10Base-T/100Base-TX/1000Base-T - RJ-45
2 x DisplayPort
2 x HDMI
1 x Kopfhörer/Mikrofon - 3,5 mm
Verpackungsinhalt
ThinkPad Hybrid USB-C Dock mit USB A
135W-Netzteil
Netzkabel
USB-C-Kabel mit USB-C auf USB-A-Dongle - extern
Garantiekarte
| Supported OS | Windows 11, Windows 10, Windows 7 |
| Warranty Type | CRU |
| Warranty Period | 3 Jahre |
| EAN | 0191999788403 |
| UPC | 191999788403 |
| Maximum Operating Temperature | 35 degrees Celsius (95 degrees Fahrenheit) |
| Minimum Operating Temperature | 0 degrees Celsius (32 degrees Fahrenheit) |
| Package Type | Brown box |
| Shipment Group | ThinkPad Hybrid USB-C with USB-A Dock ThinkPad Slim-tip 135 W AC power adapter 1m USB-C Cable with USB-A Adapter Power cord Product information, safety and warranty poster |
| Product Weight | 480 g (1.05 lbs) |
| Driver Needed | Preloaded in select ThinkPad laptops |
| Hardware Requirements | Machine with full function USB-C port or USB 3.0 Port |
| Agency Approvals | BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI |
| Color | Black |
| Power Plug | Shuko/European Standard Plug Type C |
| Power Button | Yes |
| Output Power | 90 W |
| Power Delivery | Yes |
| Input Power | 135 W |
| Charging Port | ThinkPad Slim-tip Port |
| Maximum Resolution/Refresh Rate | DisplayPort: 3840 x 2160 @ 60 Hz HDMI: 3840 x 2160 @ 60 Hz Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop. |
| Max Number of External Monitors | 2 |
| Audio Ports | 1 x 3.5 mm Stereo/Mic Combo Port |
| USB Ports | 1 x USB-C (Data, 5V/3A power) 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on) 2 x USB 2.0 |
| Video Ports | 2 x DisplayPort 1.2 2 x HDMI |
| Brand | ThinkPad |
| Description | ID | Footnote |
| Business Edition Miix Series-Lenovo MIIX 520-12IKB | 20M3 | 282.Not support Wake On LAN from Sleep, Hibernation, or Power-Off mode/MAC address pass through. Not support power delivery. |
| 20M4 | 282.Not support Wake On LAN from Sleep, Hibernation, or Power-Off mode/MAC address pass through. Not support power delivery. | |
| Commercial Lenovo Tablet-Lenovo Tablet 10 | 20L3 | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| 20L4 | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode | |
| E Series-E41-50 | 82HW | |
| E14 2nd Generation-20TA MT 2020 | 20TA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 2nd Generation-20TB MT 2020 | 20TB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 2nd Generation-ARE-20T8 MT 2020 | 20T8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| E15 2nd Generation-ARE-20T9 MT 2020 | 20T9 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| IdeaPad Creator 5 series-IdeaPad Creator 5 16ACH6 | 82L6 | |
| IdeaPad D300 series-IdeaPad Duet 3 11IAN8 | 82XK | |
| IdeaPad D500 series-IdeaPad Duet 5 12IAU7 | 82TQ | |
| IdeaPad D500 series-IdeaPad Duet 5 12IRU8 | 83B3 | |
| IdeaPad Flex 5 series-IdeaPad 5 2-in-1 14AHP9 | 83DR | P1. PXE boot supported |
| IdeaPad Flex 5 series-IdeaPad 5 2-in-1 14IRH9 | 83KX | P1. PXE boot supported |
| IdeaPad Flex 5 series-IdeaPad 5 2-in-1 14IRU9 | 83DT | |
| IdeaPad Flex 5 series-IdeaPad 5 2-in-1 16IRU9 | 83DU | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 14ABR8 | 82XX | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 14ALC05 | 82HU | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 14ALC7 | 82R9 | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 14IAU7 | 82R7 | |
| 82TA | ||
| IdeaPad Flex 5 series-IdeaPad Flex 5 14IRU8 | 82Y0 | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 15ALC05 | 82HV | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 16ABR8 | 82XY | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 16ALC7 | 82RA | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 16IAU7 | 82R8 | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 16IRU8 | 82Y1 | |
| IdeaPad Flex 7 series-IdeaPad Flex 7 14IAU7 | 82VC | |
| IdeaPad Gaming 3 series-IdeaPad Gaming 3 15ARH7 | 82SB | |
| 82UK | ||
| IdeaPad Gaming 3 series-IdeaPad Gaming 3 15IAH7 | 82S9 | |
| 82UJ | ||
| IdeaPad Gaming 3 series-IdeaPad Gaming 3 15IHU6 | 82K1 | |
| 82MG | ||
| IdeaPad Gaming 3 series-IdeaPad Gaming 3 16ARH7 | 82SC | |
| IdeaPad Gaming 3 series-IdeaPad Gaming 3 16IAH7 | 82SA | |
| IdeaPad L300 Series-IdeaPad L3 15ITL6 | 82HL | |
| IdeaPad S100 Series-IdeaPad 1 14AMN7 | 82VF | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| IdeaPad S100 Series-IdeaPad 1 14IJL7 | 82LV | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| IdeaPad S100 Series-IdeaPad 1 15AMN7 | 82VG | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| 82X5 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. | |
| IdeaPad S100 Series-IdeaPad 1 15IJL7 | 82LX | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| 82QH | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. | |
| IdeaPad S100 Series-Lenovo IdeaPad S145-15API | 81UT | 367.Not support power delivery. |
| 81V7 | 367.Not support power delivery. | |
| IdeaPad S300 Series-IdeaPad 3 14ADA6 | 82KQ | |
| IdeaPad S300 Series-IdeaPad 3 14ALC6 | 82KT | |
| IdeaPad S300 Series-IdeaPad 3 14ITL05 | 81X7 | |
| IdeaPad S300 Series-IdeaPad 3 14ITL6 | 82H7 | |
| IdeaPad S300 Series-IdeaPad 3 15ADA6 | 82KR | |
| IdeaPad S300 Series-IdeaPad 3 15ALC6 | 82KU | |
| 82MF | ||
| IdeaPad S300 Series-IdeaPad 3 15ITL05 | 81X8 | |
| IdeaPad S300 Series-IdeaPad 3 15ITL06 | 82H8 | |
| 82MD | ||
| IdeaPad S300 Series-IdeaPad 3 17ADA6 | 82KS | |
| IdeaPad S300 Series-IdeaPad 3 17ALC6 | 82KV | |
| IdeaPad S300 Series-IdeaPad 3 17ITL6 | 82H9 | |
| IdeaPad S300 Series-IdeaPad Slim 3 14IAN8 | 82XA | |
| IdeaPad S300 Series-IdeaPad Slim 3 15IAN8 | 82XB | |
| 83D7 | ||
| IdeaPad S500 Series-IdeaPad 5 14ABA7 | 82SE | |
| IdeaPad S500 Series-IdeaPad 5 14IAL7 | 82SD | |
| IdeaPad S500 Series-IdeaPad 5 15IIL05 | 81YK | |
| IdeaPad S500 Series-IdeaPad 5 15ITL05 | 82FG | |
| IdeaPad S500 Series-IdeaPad 5 Pro 14ITL6 | 82L3 | |
| IdeaPad S500 Series-IdeaPad 5 Pro 16ACH6 | 82L5 | |
| IdeaPad S500 Series-IdeaPad 5 Pro 16IHU6 | 82L9 | |
| IdeaPad S500 Series-IdeaPad Pro 5 14AHP9 | 83D3 | P1. PXE boot supported |
| IdeaPad S500 Series-IdeaPad Pro 5 14ARP8 | 83AN | |
| IdeaPad S500 Series-IdeaPad Pro 5 14IMH9 | 83D2 | |
| IdeaPad S500 Series-IdeaPad Pro 5 14IRH8 | 83AL | |
| IdeaPad S500 Series-IdeaPad Pro 5 16APH8 | 83AR | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| IdeaPad S500 Series-IdeaPad Pro 5 16ARP8 | 83AS | |
| IdeaPad S500 Series-IdeaPad Slim 5 14AHP9 | 83DB | |
| IdeaPad S500 Series-IdeaPad Slim 5 14IAH8 | 83BF | |
| IdeaPad S500 Series-IdeaPad Slim 5 14IRL8 | 82XD | |
| IdeaPad S500 Series-IdeaPad Slim 5 14IRU9 | 83FV | P1. PXE boot supported |
| IdeaPad S500 Series-IdeaPad Slim 5 15IRH9 | 83G1 | P1. PXE boot supported |
| IdeaPad S500 Series-IdeaPad Slim 5 16AHP9 | 83DD | |
| IdeaPad S500 Series-IdeaPad Slim 5 16IAH8 | 83BG | |
| IdeaPad S500 Series-IdeaPad Slim 5 16IRL8 | 82XF | |
| IdeaPad S500 Series-Lenovo IdeaPad S540-13ARE | 82DL | |
| IdeaPad S500 Series-Lenovo IdeaPad S540-13IML | 81XA | |
| IdeaPad S500 Series-Lenovo IdeaPad S540-13ITL | 82H1 | |
| IdeaPad S700 Series-IdeaPad Slim 7 14ARE05 | 82A5 | 411.Make sure connect to system USB-CTM connector with full function. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| IdeaPad S700 Series-IdeaPad Slim 7 15IIL05 | 82AD | Make sure connect to system ThunderboltTM 3 connector. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| IdeaPad S700 Series-IdeaPad Slim 7 Carbon 14ACN6 | 82L1 | 500.Support Win10, not support Win11 |
| IdeaPad S700 Series-IdeaPad Slim 7 Pro 16ACH6 | 82QR | |
| IdeaPad S700 Series-Lenovo Slim 7 14IAP7 | 82SX | |
| IdeaPad S900 Series-IdeaPad Slim 9 14ITL5 | 82D2 | |
| IdeaPad S900 Series-Lenovo Slim 9 14IAP7 | 82T1 | |
| L13 Clam AMD G2-21AC - L13 Clam Gen 2 | 21AC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G2-20X2 - L14 Gen 2 | 20X2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G2-20X3 - L15 Gen 2 | 20X3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G2-20X4 - L15 Gen 2 | 20X4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L470-20JV MT | 20JV | W34M1.Wake On LAN from Sleep, Hibernation.MAC address pass through |
| LOQ 3 Series-LOQ 15IRH8 | 82XV | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| 83EU | ||
| LOQ 3 Series-LOQ 16IRH8 | 82XW | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Lenovo 100e Series-100e Intel G4 | 83G8 | |
| 83G9 | ||
| Lenovo 100w Series-100w G4 | 82VK | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 82VL | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| Lenovo 13w Series-13w Yoga | 82S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 82S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Lenovo 13w Series-13w Yoga G2 | 82YR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 82YS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Lenovo 14e Series-14e G3 | 82W6 | |
| 82W7 | ||
| Lenovo 300w Series-300w G4 | 82VM | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 82VN | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| Lenovo 500e Series-500e G4 | 82W4 | |
| 82W5 | ||
| Lenovo 500w Series-500w G4 | 82VQ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 82VR | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| Lenovo Flex 7 Series-Lenovo Flex 7 14IRU8 | 82Y2 | |
| Lenovo K14 Series-K14 AMD G1 | 21CU | P1. PXE boot supported |
| 21CV | P1. PXE boot supported | |
| Lenovo K14 Series-K14 G2 | 21G0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21G1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Lenovo S700 Series-Lenovo Slim 7 14IMH9 | 83D8 | |
| Lenovo S700 Series-Lenovo Slim 7 14IRP8 | 83A4 | |
| Lenovo S700 Series-Lenovo Slim 7 16ARH7 | 82UX | |
| Lenovo S700 Series-Lenovo Slim 7 16IAH7 | 82VB | |
| Lenovo S700 Series-Lenovo Slim 7 ProX 14IAH7 | 82V1 | |
| Lenovo S700 Series-Lenovo Slim Pro 7 14APH8 | 83AW | |
| Lenovo S700 Series-Lenovo Slim Pro 7 14ARP8 | 83AX | |
| Lenovo S900 Series-Lenovo Slim Pro 9 16IRP8 | 83C0 | |
| P14s 2nd Generation-20VY MT 2021 | 20VY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y1 - P14s AMD Gen 1 | 20Y1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y2 - P14s AMD Gen 1 | 20Y2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G2-20XL - T14 AMD Gen 2 | 20XL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| TP25-20K7 MT | 20K7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkBook Plus Series-ThinkBook 13x ITG | 20WJ | |
| ThinkBook Plus Series-ThinkBook Plus G2 ITG | 20WH | |
| ThinkBook Plus Series-ThinkBook Plus G3 IAP | 21EL | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Plus Series-ThinkBook Plus G4 IRU | 21JJ | |
| ThinkBook Plus Series-ThinkBook Plus G5 Hybrid Station | 21N9 | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| ThinkBook Series (Perfomance)-Lenovo ThinkBook 15p-IMH | 20V3 | 353.Not support power delivery, Not support Power button clone, Not support MAC address pass through/PXE Boot/Wake on LAN. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| ThinkBook Series (Perfomance)-ThinkBook 16p G2 ACH | 20YM | Must attach Notebook AC power adapter to system directly to get enough power charging, support PXE boot. |
| ThinkBook Series (Perfomance)-ThinkBook 16p G3 ARH | 21EK | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 16p G4 IRH | 21J8 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 16p G5 IRX | 21N5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkBook Series (Perfomance)-ThinkBook 16p NX ARH | 21EV | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Slim Series-ThinkBook 13s 2nd Generation-ITL | 20V9 | Support win10, not support win11. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| ThinkBook Slim Series-ThinkBook 13s G2 ARE | 20WC | 413.Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| ThinkBook Slim Series-ThinkBook 13s G3 ACN | 20YA | P1. PXE boot supported |
| ThinkBook Slim Series-ThinkBook 13s G4 ARB | 21AS | |
| ThinkBook Slim Series-ThinkBook 13s G4 IAP | 21AR | |
| ThinkBook Slim Series-ThinkBook 13s G5 IRP | 21JA | |
| ThinkBook Slim Series-ThinkBook 14s 2nd Generation-ITL | 20VA | Support win10, not support win11. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| ThinkBook X series-ThinkBook 13x G2 IAP | 21AT | |
| ThinkBook Yoga Series-Lenovo ThinkBook 14s Yoga ITL | 20WE | P1W3M1. PXE boot supported. Wake On LAN from Sleep.MAC address pass through |
| ThinkBook Yoga Series-ThinkBook 14 2-in-1 G4 IML | 21MX | P1. PXE boot supported |
| ThinkBook Yoga Series-ThinkBook 14s Yoga G3 IRU | 21JG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkCentre M AIO Series-ThinkCentre M910z | 10NR | |
| 10NS | ||
| 10NT | ||
| 10NU | ||
| 10NV | ||
| 10NW | ||
| ThinkCentre M Tiny Series-ThinkCentre M910q | 10MU | |
| ThinkCentre M Traditional Desktop Series-NEC Canopus-IR-LV | 12H5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad 11e Series-11e Yoga 6th Generation | 20SE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20SF | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E Series-E470 | 20H1 | 293.Wake On LAN from Sleep. Not support PXE boot ,Not support power delivery,Not support power button mirror/Clone. |
| 20H2 | 293.Wake On LAN from Sleep. Not support PXE boot ,Not support power delivery,Not support power button mirror/Clone. | |
| ThinkPad E Series-E480 | 20KN | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20KQ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E Series-E490 | 20N8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20N9 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E Series-E490s | 20NG | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad E Series-E495 | 20NE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad E Series-E580 | 20KS | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20KT | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E Series-E590 | 20NB | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20NC | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E Series-E595 | 20NF | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad E14 Series-E14 2nd Generation-ARE | 20T6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20T7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E14 Series-E14 AMD 3rd Generation | 20Y7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20YD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20YE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20YF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 AMD G4 | 21EB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21EC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 AMD G5 | 21JR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 AMD G6 | 21M3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21M4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 G4 | 21E3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 G5 | 21JK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14-IML | 20RA | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20RB | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E15 Series-E15 AMD 3rd Generation | 20YG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20YH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20YJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20YK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E15 Series-E15 AMD G4 | 21ED | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21EE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E15 Series-E15 G2 | 20TD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20TE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E15 Series-E15 G4 | 21E6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E15 Series-E15-IML | 20RD | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20RE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad E16 series-E16 AMD G1 | 21JT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E16 series-E16 AMD G2 | 21M5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21M6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E16 series-E16 G1 | 21JN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L Series-L380 | 20M5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20M6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20M7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20M8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L Series-L390 | 20NR | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20NS | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20NT | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20NU | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L Series-L460 | 20FV | |
| ThinkPad L Series-L470 | 20J4 | W34M1.Wake On LAN from Sleep, Hibernation.MAC address pass through |
| 20J5 | W34M1.Wake On LAN from Sleep, Hibernation.MAC address pass through | |
| 20JU | W34M1.Wake On LAN from Sleep, Hibernation.MAC address pass through | |
| ThinkPad L Series-L480 | 20LS | PXE boot supported. Wake On LAN from Sleep, Hibernation.MAC address pass through |
| 20LT | PXE boot supported. Wake On LAN from Sleep, Hibernation.MAC address pass through | |
| ThinkPad L Series-L490 | 20Q5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20Q6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L Series-L580 | 20LW | PXE boot supported. Wake On LAN from Sleep, Hibernation.MAC address pass through |
| 20LX | PXE boot supported. Wake On LAN from Sleep, Hibernation.MAC address pass through | |
| ThinkPad L Series-L590 | 20Q7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20Q8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L13 Series-L13 2-in-1 G5 | 21LM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam | 20R3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20R4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L13 Series-L13 Clam 2nd Generation | 20VH | P1W45M1 non-Vpro BIOS Version after R1FET34W; Vpro BIOS Version after R1PET14W. |
| 20VJ | P1W45M1 non-Vpro BIOS Version after R1FET34W; Vpro BIOS Version after R1PET14W. | |
| ThinkPad L13 Series-L13 Clam AMD G2 | 21AB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad L13 Series-L13 Clam AMD G3 | 21B9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam AMD G4 | 21FN | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21FQ | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L13 Series-L13 Clam G3 | 21B3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21B4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam G4 | 21FG | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21FH | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L13 Series-L13 Clam G5 | 21LB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga | 20R5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20R6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L13 Series-L13 Yoga 2nd Generation | 20VK | P1W45M1 non-Vpro BIOS Version after R1FET34W; Vpro BIOS Version after R1PET14W. |
| 20VL | P1W45M1 non-Vpro BIOS Version after R1FET34W; Vpro BIOS Version after R1PET14W. | |
| ThinkPad L13 Series-L13 Yoga AMD G2 | 21AD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G3 | 21BB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G4 | 21FR | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21FS | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L13 Series-L13 Yoga G3 | 21B5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21B6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga G4 | 21FJ | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21FK | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L14 Series-L14 AMD G1 | 20U5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L14 Series-L14 AMD G2 | 20X5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20X6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L14 Series-L14 AMD G3 | 21C5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G4 | 21H5 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21H6 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L14 Series-L14 AMD G5 | 21L5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G2 | 20X1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad L14 Series-L14 G3 | 21C1 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21C2 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L14 Series-L14 G4 | 21H1 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21H2 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L14 Series-L14 G5 | 21L1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-ThinkPad L14 | 20U1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L15 Series-L15 AMD G1 | 20U7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L15 Series-L15 AMD G2 | 20X7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20X8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 AMD G3 | 21C7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 AMD G4 | 21H7 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21H8 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L15 Series-L15 G3 | 21C3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 G4 | 21H3 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21H4 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad L15 Series-ThinkPad L15 | 20U3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L16 Series-L16 AMD G1 | 21L7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L16 Series-L16 G1 | 21L3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P Series-P40 Yoga | 20GR | |
| ThinkPad P Series-P43s | 20RH | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20RJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad P Series-P51s | 20HB | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20HC | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JY | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20K0 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad P Series-P52s | 20LB | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20LC | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad P Series-P53 | 20QN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20QQ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P Series-P53s | 20N6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20N7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad P Series-P73 | 20QR | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20QS | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P1 Series-P1 G4 | 20Y3 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20Y4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P1 Series-P1 G5 | 21DC | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21DD | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P1 Series-P1 G6 | 21FV | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FW | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P1 Series-P1 G7 | 21KV | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21KW | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P14 Series-P14s 2nd Generation | 20VX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P14 Series-P14s AMD G2 | 21A0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21A1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G4 | 21K5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G5 | 21ME | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G3 | 21AK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G4 | 21HF | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21HG | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad P14 Series-P14s G5 | 21G2 | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21G3 | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P14 Series-ThinkPad P14s | 20S4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20S5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15s 1st Generation | 20T4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20T5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15s 2nd Generation | 20W6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15v AMD G3 | 21EM | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21EN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-P15v G2 | 21A9 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21AA | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-P15v G3 | 21D8 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21D9 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-T15p G2 | 21A7 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21A8 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-T15p G3 | 21DA | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21DB | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-ThinkPad P15 | 20ST | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P15 Series-ThinkPad P15g | 20UR | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20US | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-ThinkPad P15v | 20TQ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20TR | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15-20SU MT 2020 | 20SU | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P16 Series-P16 G1 | 21D6 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21D7 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16 G2 | 21FA | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FB | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16s AMD G1 | 21CK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s AMD G2 | 21K9 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21KA | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad P16 Series-P16s G1 | 21BT | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21BU | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16s G2 | 21HK | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21HL | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16s G3 | 21KS | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21KT | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16v AMD G1 | 21FE | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FF | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16v G1 | 21FC | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FD | Dock cannot support system enter modern standby (S0i3). Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16v G2 | 21KX | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21KY | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P17 Series-ThinkPad P17 | 20SN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W345M1 |
| 20SQ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W345M1 | |
| ThinkPad S Series-S1 4th Gen | 20LK | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad T Series-T460 | 20FM | |
| 20FN | ||
| ThinkPad T Series-T460p | 20FW | |
| ThinkPad T Series-T460s | 20F9 | |
| ThinkPad T Series-T470 | 20HD | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20HE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JM | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JN | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T470s | 20HF | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20HG | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JS | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JT | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T480 | 20L5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20L6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T480s | 20L7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20L8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T490 | 20N2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20N3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20Q9 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20QH | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20RX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20RY | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T490s | 20NX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20NY | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T495 | 20NJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20NK | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T495s | 20QJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20QK | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T570 | 20H9 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20HA | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JW | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T580 | 20L9 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20LA | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T Series-T590 | 20N4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20N5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad T14 Series-T14 2nd Generation | 20W0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20W2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20W3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G1 | 20UD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G2 | 20XK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14 AMD G4 | 21K3 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21K4 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad T14 Series-T14 AMD G5 | 21MC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G3 | 21AH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G4 | 21HD | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21HE | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad T14 Series-T14 G5 | 21ML | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s 2nd Generation | 20WM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G1 | 20UH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G2 | 20XF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G3 | 21CQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G4 | 21F8 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21F9 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad T14 Series-T14s G3 | 21BR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G4 | 21F6 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21F7 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad T14 Series-T14s G5 | 21LS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s Snapdragon G6 | 21N1 | ThinkPad Hybrid Dock does not support firmware updates on Windows on ARM notebooks. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21N2 | ThinkPad Hybrid Dock does not support firmware updates on Windows on ARM notebooks. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-ThinkPad T14 | 20S0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20S3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-ThinkPad T14s | 20T0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20T1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-T15 2nd Generation | 20W4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-ThinkPad T15 | 20S6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20S7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-ThinkPad T15p | 20TM | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20TN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad T16 Series-T16 AMD G1 | 21CH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 AMD G2 | 21K7 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21K8 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad T16 Series-T16 G1 | 21BV | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21BW | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad T16 Series-T16 G2 | 21HH | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21HJ | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad T16 Series-T16 G3 | 21MN | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21MQ | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad X Series (Relationship Only)-X250 | 20CL | |
| ThinkPad X Series-A285 | 20MW | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20MX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X Series-A485 | 20MU | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20MV | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X Series-ThinkPad X270 | 20HM | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20HN | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-ThinkPad 11e 2nd Generation | 20E5 | |
| ThinkPad X1 Series-ThinkPad 11e 5th Generation | 20LM | PXE boot supported. Wake On LAN from Sleep, Hibernation supported |
| 20LN | PXE boot supported. Wake On LAN from Sleep, Hibernation supported | |
| ThinkPad X1 Series-ThinkPad 13 2nd Generation | 20J1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20J2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-ThinkPad Yoga 260 | 20FD | |
| ThinkPad X1 Series-ThinkPad Yoga 370 | 20JH | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20JJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-X1 Carbon 5th Generation | 20HQ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20HR | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20K3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20K4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-X1 Carbon 6th Generation | 20KG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20KH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 Series-X1 Carbon 7th Generation | 20QD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20QE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20R1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20R2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 Series-X1 Yoga 1st Generation | 20FQ | |
| 20FR | ||
| ThinkPad X1 Series-X1 Yoga 2nd Generation | 20JD | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20JE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JF | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| 20JG | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-X1 Yoga 3rd Generation | 20LD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20LE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20LF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20LG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 Series-X1 Yoga 4th Generation | 20QF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20QG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20SA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20SB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 Series-X250 | 20CM | |
| ThinkPad X1 Series-X260 | 20F5 | |
| 20F6 | ||
| ThinkPad X1 Series-X270 | 20K5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20K6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-X280 | 20KE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20KF | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-X380 Yoga | 20LH | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20LJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-X390 | 20Q0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20Q1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20SC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20SD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 Series-X390 Yoga | 20NN | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20NQ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad X1 Series-X395 | 20NL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20NM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 Tablet-ThinkPad X1 Tablet | 20JB | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| 20JC | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode | |
| ThinkPad X1 Tablet-ThinkPad X1 Tablet Gen 3 | 20KJ | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| 20KK | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode | |
| ThinkPad X1 series-X1 2-in-1 G9 | 21KE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon 8th Generation | 20U9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon 9th Generation | 20XW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G10 | 21CB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G11 | 21HM | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21HN | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X1 series-X1 Carbon G12 | 21KC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Extreme G4 | 20Y5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20Y6 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad X1 series-X1 Extreme G5 | 21DE | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21DF | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad X1 series-X1 Fold | 20RK | P1. PXE boot supported |
| 20RL | P1. PXE boot supported | |
| ThinkPad X1 series-X1 Fold 16 G1 | 21ES | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21ET | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X1 series-X1 Nano | 20UN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano G2 | 21E8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano G3 | 21K1 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21K2 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X1 series-X1 Titanium G1 | 20QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga 5th Generation | 20UB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga 6th Generation | 20XY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20Y0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga G7 | 21CD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga G8 | 21HQ | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21HR | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X12 Series-X12 Detachable 1st Generation | 20UV | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 20UW | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X12 Series-X12 Detachable G2 | 21LK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 2-in-1 G5 | 21LW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G1 | 20UF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 AMD G2 | 20XH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G3 | 21CM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G4 | 21J3 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21J4 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X13 series-X13 G1 | 20T2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20T3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G2 | 20WK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20WL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G3 | 21BN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G4 | 21EX | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21EY | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X13 series-X13 G5 | 21LU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga 2nd Generation | 20W8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga G3 | 21AW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga G4 | 21F2 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21F3 | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad X13 series-X13s G1 | 21BX | ThinkPad Hybrid Dock does not support firmware updates on Windows on ARM notebooks. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BY | ThinkPad Hybrid Dock does not support firmware updates on Windows on ARM notebooks. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z13 Series-Z13 AMD G1 | 21D2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21D3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z13 Series-Z13 AMD G2 | 21JV | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 |
| 21JW | Dock cannot support system enter modern standby (S0i3) ,.P1W45M1 | |
| ThinkPad Z16 Series-Z16 AMD G1 | 21D4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21D5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad Z16 Series-Z16 AMD G2 | 21JX | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21JY | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| Thinkbook Series-Lenovo ThinkBook 13s-IML | 20RR | 352.Support power button clone with lid open mode only. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Thinkbook Series-Lenovo ThinkBook 14-IIL | 20SL | Make sure connect to system USB-C connector with USB 3.1 Gen2/Power connector. Support power button clone and Wake on Lan with Notebook BIOS DJCN18WW or later.For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Thinkbook Series-Lenovo ThinkBook 14-IML | 20RV | Make sure connect to system USB-CTM connector with USB 3.1 Gen2/Power connector. Support power button clone and Wake on Lan with Notebook BIOS CJCN28WW or later .For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Thinkbook Series-Lenovo ThinkBook 14s-IML | 20RS | 352.Support power button clone with lid open mode only. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Thinkbook Series-Lenovo ThinkBook 15-IIL | 20SM | Make sure connect to system USB-C connector with USB 3.1 Gen2/Power connector. Support power button clone and Wake on Lan with Notebook BIOS DJCN18WW or later.For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Thinkbook Series-Lenovo ThinkBook 15-IML | 20RW | Make sure connect to system USB-CTM connector with USB 3.1 Gen2/Power connector. Support power button clone and Wake on Lan with Notebook BIOS CJCN28WW or later .For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Thinkbook Series-Lenovo ThinkBook Plus | 20TG | 413.Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Thinkbook Series-ThinkBook 14 2nd Generation-ARE | 20VF | |
| Thinkbook Series-ThinkBook 14 2nd Generation-ITL | 20VD | |
| Thinkbook Series-ThinkBook 14 3rd Generation - ACL | 21A2 | |
| Thinkbook Series-ThinkBook 14 G4 ABA | 21DK | |
| Thinkbook Series-ThinkBook 14 G4+ ARA | 21D0 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 14 G4+ IAP | 21CX | |
| Thinkbook Series-ThinkBook 14 G5 IRL | 21JC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 G6 ABP | 21KJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 G6 IRL | 21KG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 G6 IRL Brazil | 21NQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 G6+ IMH | 21LD | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Thinkbook Series-ThinkBook 14 G7 ARP | 21MV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 G7 IML | 21MR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21NC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Thinkbook Series-ThinkBook 15 2nd Generation-ARE | 20VG | |
| Thinkbook Series-ThinkBook 15 2nd Generation-ITL | 20VE | |
| Thinkbook Series-ThinkBook 15 3rd Generation - ACL | 21A4 | |
| Thinkbook Series-ThinkBook 15 G4 ABA | 21DL | |
| Thinkbook Series-ThinkBook 15 G5 IRL | 21JD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 16 G4+ ARA | 21D1 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 16 G4+ IAP | 21CY | Notebook power button mirroring function is not available with this dock, Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 16 G6 ABP | 21KK | |
| Thinkbook Series-ThinkBook 16 G6 IRL | 21KH | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 16 G6 IRL Brazil | 21NR | |
| Thinkbook Series-ThinkBook 16 G7 ARP | 21MW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 16 G7 IML | 21MS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21ND | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| V Series-Lenovo V14 G1 IML | 82NA | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| V Series-Lenovo V14 G2 ALC | 82KC | Must attach Notebook AC power adapter to system directly to get enough power charging, support PXE boot. |
| V Series-Lenovo V14 G2 IJL | 82QX | Must attach Notebook AC power adapter to system directly to get enough power charging, support PXE boot, Power button Clone. |
| V Series-Lenovo V14 G2 ITL(Brazil) | 82NM | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| V Series-Lenovo V14 G4 IAN | 82YV | |
| V Series-Lenovo V14 G5 IRL | 83GU | PXE boot supported.MAC address pass through supported |
| 83HD | PXE boot supported.MAC address pass through supported | |
| V Series-Lenovo V14-ITL | 82KA | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| V Series-Lenovo V15 G1 IML | 82NB | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| V Series-Lenovo V15 G1 IML(Brazil) | 82NQ | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| V Series-Lenovo V15 G2 ALC | 82KD | Must attach Notebook AC power adapter to system directly to get enough power charging, support PXE boot. |
| V Series-Lenovo V15 G2 IJL | 82QY | Must attach Notebook AC power adapter to system directly to get enough power charging, support PXE boot, Power button Clone. |
| V Series-Lenovo V15 G2 ITL(Brazil) | 82ME | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| V Series-Lenovo V15 G4 IAN | 82YW | |
| V Series-Lenovo V15 G5 IRL | 83GW | PXE boot supported.MAC address pass through supported |
| 83HF | PXE boot supported.MAC address pass through supported | |
| V Series-Lenovo V15-ITL | 82KB | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| X13 AMD G1-20UG MT 2020 | 20UG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga-20SX MT 2020 | 20SX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga-20SY MT 2020 | 20SY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Yoga C600 Series-Yoga 6 13ABR8 | 83B2 | |
| Yoga C700 Series-Yoga 7 14ARP8 | 82YM | |
| Yoga C700 Series-Yoga 7 14IRL8 | 82YL | |
| Yoga C700 Series-Yoga 7 16ARP8 | 83BS | |
| Yoga C700 Series-Yoga 7 16IRL8 | 82YN | |
| Yoga C700 Series-Yoga 7 2-in-1 14AHP9 | 83DK | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| Yoga C700 Series-Yoga 7 2-in-1 14IML9 | 83DJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Yoga C700 Series-Yoga 7 2-in-1 16AHP9 | 83DM | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| Yoga C700 Series-Yoga 7 2-in-1 16IML9 | 83DL | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Yoga C900 Series-Yoga Book 9 13IRU8 | 82YQ | |
| Yoga D700 series-Yoga Duet 7 13IML05 | 82AS | |
| Yoga D700 series-Yoga Duet 7 13ITL6 | 82MA | P1. PXE boot supported |
| Yoga D700 series-Yoga Duet 7 13ITL6-LTE | 82Q7 | |
| Yoga D700 series-Yoga Duet IML 2020 | 82E9 | |
| Yoga S600 Series-Yoga Slim 6 14APU8 | 82X3 | |
| 83BL | ||
| Yoga S600 Series-Yoga Slim 6 14IAP8 | 82WU | |
| 83C7 | ||
| Yoga S600 Series-Yoga Slim 6 14IRH8 | 83E0 | |
| Yoga S600 Series-Yoga Slim 6 14IRP8 | 82WV | |
| Yoga S700 Series- | 82A4 | Make sure connect to system ThunderboltTM 3 connector. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Yoga S700 Series-Yoga Pro 7 14AHP9 | 83E3 | P1. PXE boot supported |
| Yoga S700 Series-Yoga Pro 7 14APH8 | 82Y8 | |
| Yoga S700 Series-Yoga Pro 7 14ARP8 | 83AU | |
| Yoga S700 Series-Yoga Pro 7 14IMH9 | 83E2 | |
| Yoga S700 Series-Yoga Pro 7 14IRH8 | 82Y7 | |
| Yoga S700 Series-Yoga Slim 7 14APU8 | 83AA | |
| Yoga S700 Series-Yoga Slim 7 14ARE05 | 82A2 | 411.Make sure connect to system USB-CTM connector with full function. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Yoga S700 Series-Yoga Slim 7 14IIL05 | 82A1 | Make sure connect to system ThunderboltTM 3 connector. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Yoga S700 Series-Yoga Slim 7 14IMH9 | 83CV | |
| Yoga S700 Series-Yoga Slim 7 15IIL05 | 82AA | Make sure connect to system ThunderboltTM 3 connector. Support power button clone. For compatibility, pls download and install dock driver from https://pcsupport.lenovo.com/us/en/solutions/pd014572 |
| Yoga S700 Series-Yoga Slim 7 Carbon 14ACN6 | 82L0 | 500.Support Win10, not support Win11 |
| Yoga S700 Series-Yoga Slim 7 Pro 14ACH5 D | 82NJ | |
| Yoga S700 Series-Yoga Slim 7 Pro 14ACH5 OD | 82NK | |
| Yoga S700 Series-Yoga Slim 7 Pro 14ARH5 | 82LA | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IAH7 | 82UT | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IAP7 | 82SV | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IHU5 | 82NC | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IHU5 O | 82NH | |
| Yoga S700 Series-Yoga Slim 7 Pro 14ITL5 | 82FX | |
| Yoga S700 Series-Yoga Slim 7 Pro 16ACH6 | 82QQ | |
| Yoga S700 Series-Yoga Slim 7 Pro 16ARH7 | 82UW | |
| Yoga S700 Series-Yoga Slim 7 Pro 16IAH7 | 82VA | |
| Yoga S700 Series-Yoga Slim 7 ProX 14IAH7 | 82TK | |
| Yoga S900 Series-Yoga Pro 9 16IRP8 | 83BY | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Yoga S900 Series-Yoga Slim 9 14IAP7 | 82T0 | |
| Yoga S900 Series-Yoga Slim 9 14ITL5 | 82D1 |
| Product Name | Lenovo Dock ThinkPad Hybrid USB-C Dock | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | ThinkPad Hybrid USB-C Dock mit USB A (Europa, Schukostecker Typ C)Universelle Docking-Lösungen der Enterprise-Klasse Die ThinkPad Hybrid USB-C Dock mit USB A erweitert die Möglichkeiten nahezu aller Laptops – ob alt oder neu. Sie ist die ideale Lösung für Großunternehmen mit gemischten PC- oder Shared-Desk-Umgebungen. Besonders in Großunternehmen erleichtert die Dock der IT-Abteilung ihre Arbeit, indem sie Verwaltungfunktionen wie PXE-Boot und das Durchschleifen der MAC-Adresse unterstützt. Sie bietet drei Highspeed-Anschlüsse vpm Typ USB 3.1 (Gen. 2) und Anschlussmöglichkeiten für bis zu zwei 4K/UHD-Bildschirme. Über die „Rapid Charge“-Funktion unterstützt sie zudem das schnelle Aufladen von ThinkPad Notebooks. Mit dem mitgelieferten USB-C-auf-USB-A-Adapter dient sie zudem als Portreplikator für Notebooks, die nicht von Lenovo stammen oder nicht über einen USB Typ C-Anschluss verfügen.
Top Features
Schnittstellen: 2 x USB 3.1 Gen 2
Verpackungsinhalt
Technische Daten
Compatible Machines
Stand: August 2024
|
