INTELLIGENTER ARBEITEN Vorstellung des ThinkPad Universal USB-C-Dock. Mit dieser fortschrittlichen, universell kompatiblen Ein-Kabel-Docking-Lösung können Sie intelligenter und nicht härter arbeiten. Sie bietet eine große Auswahl an Anschlüssen, Plug-and-Play-Funktionalität der nächsten Generation und Schnellladefunktionen (bis zu 100 W für die meisten USB-C-Notebooks*). Sie ist intelligent genug, um wichtige Firmwareaktualisierungen automatisch zu installieren. Sie eignet sich optimal für eine gemischte PC-Umgebung und die Arbeit zu Hause. Zudem haben Sie die Möglichkeit, mehr zu tun. ;; * Das 90-W-Netzteil lädt ThinkPad und andere USB-C-Notebooks bis zu 65 W. Zum Laden mit 100 W ist ein optionales Slim Tip 135-W-Netzteil erforderlich (PN: 4X20E50558 (US)/4X20E505xx). Separat erhältlich.
What's in the Box
ThinkPad Universal USB-C Dock
90-W-Netzteil
Netzkabel
Lenovo USB-Typ-C-Kabel (1 m)
Garantiekarte
| Physical Security Feature | 2 x Sicherheitsschloss-Schlitz |
| Minimum Operating Temperature | 0 ℃ |
| Maximum Operating Temperature | 35 ℃ |
| Supported OS | Windows 11 Windows 10 Windows 7 |
| JAN | 4580551301475 |
| EAN | 0195348192095 |
| UPC | 195348192095 |
| Warranty Type | CRU |
| Warranty Period | 3 Jahre |
| Maximum Relative Humidity (%) | 95 % (nicht kondensierend) |
| Minimum Relative Humidity (%) | 20 % |
| Packed Weight | 955 g |
| Packed Dimensions (L x D x H) | 210 x 158 x 75 mm |
| Package Type | Neutrale Kartonverpackung |
| Shipment Group | ThinkPad Universal USB-C Dock 90 W-Netzteil Netzkabel Unterlagen Kabel |
| Product Weight | 340 g |
| Height | 30,75 mm |
| Depth | 80 mm |
| Length | 171 mm |
| Driver Needed | Ja |
| Agency Approvals | FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TÜV-Kennzeichnung Serbia Kvalitet LoA Israel SII Ukraine DoC NOM |
| Color | Schwarz |
| Power Plug | Flachstecker |
| Power Button | Ja |
| Output Power | 65 W mit angeschlossenem 90-W-Netzteil, 100 W mit angeschlossenem 135-W-Netzteil |
| Power Delivery | Ja |
| Input Power | 90 W |
| Charging Port | DC-IN |
| Maximum Resolution/Refresh Rate | 2 x 3840 x 2160 bei 60 Hz 1 x 3840 x 2160 bei 30 Hz |
| Max Number of External Monitors | 3 |

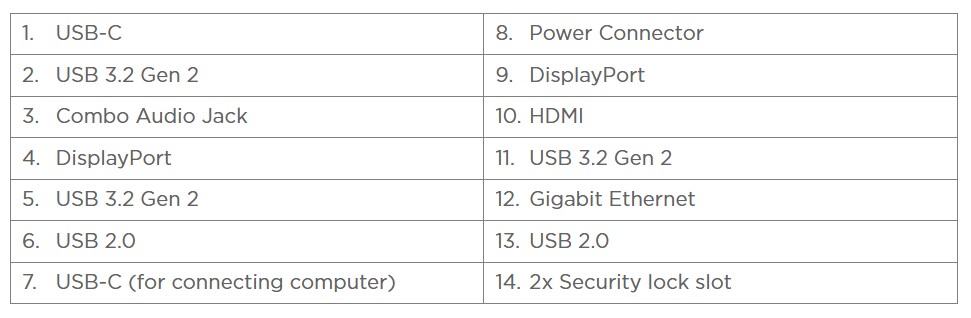

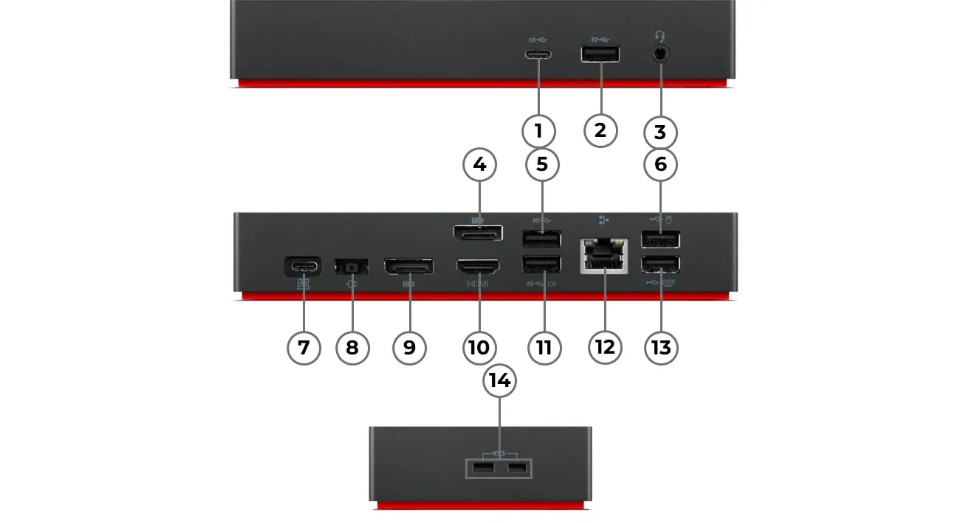

| Ethernet | 1 x Gigabit-Ethernet |
| Audio Ports | 1 x Audio-Kombianschluss |
| USB Ports | 3 x USB 3.2 Gen 2 2 × USB 2.0 1 x USB-C |
| Video Ports | 2 x DisplayPort 1 x HDMI-Anschluss |
| Brand | ThinkPad |
| Description | ID | Footnote |
| 100e AMD G3-82J7 - 100e Gen 3 | 82J7 | |
| 100e AMD G3-82J8 - 100e Gen 3 | 82J8 | |
| 100e G4-82W0 - 100e G4 | 82W0 | |
| 100e G4-82W1 - 100e G4 | 82W1 | |
| 100w AMD G3-82HY - 100w Gen 3 | 82HY | |
| 100w AMD G3-82J0 - 100w Gen 3 | 82J0 | |
| 100w G4-82VK – 100w Gen 4 | 82VK | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 100w G4-82VL – 100w Gen 4 | 82VL | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 13w Yoga G2-82YR - 13w Yoga Gen 2 | 82YR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 13w Yoga G2-82YS - 13w Yoga Gen 2 | 82YS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 13w Yoga-82S1 - 13w Yoga | 82S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 13w Yoga-82S2 - 13w Yoga | 82S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 300e G4-82W2 - 300e G4 | 82W2 | |
| 300e G4-82W3 - 300e G4 | 82W3 | |
| 300w G4-82VM – 300w Gen 4 | 82VM | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 300w G4-82VN – 300w Gen 4 | 82VN | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 500w G4-82VQ – 500w Gen 4 | 82VQ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 500w G4-82VR – 500w Gen 4 | 82VR | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| C14 G1 Chromebook-21C9 - C14 Gen 1 Chromebook | 21C9 | Dock Firmware updates on Windows-based host systems only. Not support PXE boot, Wake On LAN from Sleep, Power-Off mode, MAC address pass through. |
| C14 G1 Chromebook-21CA - C14 Gen 1 Chromebook | 21CA | Dock Firmware updates on Windows-based host systems only. Not support PXE boot, Wake On LAN from Sleep, Power-Off mode, MAC address pass through. |
| E14 2nd Generation-20TA MT 2020 | 20TA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 2nd Generation-20TB MT 2020 | 20TB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 2nd Generation-ARE-20T6 MT 2020 | 20T6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 2nd Generation-ARE-20T7 MT 2020 | 20T7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 AMD 3rd Generation-20Y7 - E14 AMD Gen 3 | 20Y7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 AMD 3rd Generation-20YD - E14 AMD Gen 3 | 20YD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 AMD 3rd Generation-20YE - E14 AMD Gen 3 | 20YE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 AMD 3rd Generation-20YF - E14 AMD Gen 3 | 20YF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 AMD G4-21EB - E14 AMD Gen 4 | 21EB | PXE boot supported.MAC address pass through supported |
| E14 AMD G4-21EC - E14 AMD Gen 4 | 21EC | PXE boot supported.MAC address pass through supported |
| E14 G4-21E3 - E14 Gen 4 | 21E3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 G4-21E4 - E14 Gen 4 | 21E4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 2nd Generation-ARE-20T8 MT 2020 | 20T8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 2nd Generation-ARE-20T9 MT 2020 | 20T9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YG - E15 AMD Gen 3 | 20YG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YH - E15 AMD Gen 3 | 20YH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YJ - E15 AMD Gen 3 | 20YJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YK - E15 AMD Gen 3 | 20YK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 AMD G4-21ED - E15 AMD Gen 4 | 21ED | PXE boot supported.MAC address pass through supported |
| E15 AMD G4-21EE - E15 AMD Gen 4 | 21EE | PXE boot supported.MAC address pass through supported |
| E15 G2-20TD MT 2020 | 20TD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G2-20TE MT 2020 | 20TE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G4-21E6 - E15 Gen 4 | 21E6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G4-21E7 - E15 Gen 4 | 21E7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| IdeaPad 3 14IAN8-82XA - IdeaPad 3 14IAN8 | 82XA | |
| IdeaPad 3 15IAN8-82XB - IdeaPad 3 15IAN8 | 82XB | |
| IdeaPad 5 14ABA7-82SE - IdeaPad 5 14ABA7 | 82SE | |
| IdeaPad 5 14IAL7-82SD - IdeaPad 5 14IAL7 | 82SD | |
| IdeaPad 5 Pro 16IAH7-82SK - IdeaPad 5 Pro 16IAH7 | 82SK | |
| IdeaPad Duet 5 12IAU7-82TQ - IdeaPad Duet 5 12IAU7 | 82TQ | |
| IdeaPad Flex 5 14ABR8-82XX - IdeaPad Flex 5 14ABR8 | 82XX | |
| IdeaPad Flex 5 14IRU8-82Y0 - IdeaPad Flex 5 14IRU8 | 82Y0 | |
| IdeaPad Flex 5 16ABR8-82XY - IdeaPad Flex 5 16ABR8 | 82XY | |
| IdeaPad Flex 5 16IRU8-82Y1 - IdeaPad Flex 5 16IRU8 | 82Y1 | |
| IdeaPad Flex 7 14IAU7-82VC - IdeaPad Flex 7 14IAU7 | 82VC | |
| IdeaPad Gaming 3 15IRH8-82XV - IdeaPad Gaming 3 15IRH8 | 82XV | |
| IdeaPad Gaming 3 16ARH7-82SC - IdeaPad Gaming 3 16ARH7 | 82SC | |
| IdeaPad Gaming 3 16IRH8-82XW - IdeaPad Gaming 3 16IRH8 | 82XW | |
| IdeaPad S700 Series-IdeaPad Slim 7 Pro 16ACH6 | 82QR | |
| K14 AMD G1-21CU - K14 Gen 1 | 21CU | P1. PXE boot supported |
| K14 AMD G1-21CV - K14 Gen 1 | 21CV | P1. PXE boot supported |
| K14 G1-21CS - K14 Gen 1 | 21CS | P1. PXE boot supported |
| K14 G1-21CT - K14 Gen 1 | 21CT | P1. PXE boot supported |
| L13 Clam 2nd Generation-20VH MT 2020 | 20VH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam 2nd Generation-20VJ MT 2020 | 20VJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G2-21AB - L13 Clam Gen 2 | 21AB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G2-21AC - L13 Clam Gen 2 | 21AC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G3-21B9 - L13 Clam Gen 3 | 21B9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G3-21BA - L13 Clam Gen 3 | 21BA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G4-21FN - L13 Clam AMD Gen 4 | 21FN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G4-21FQ - L13 Clam AMD Gen 4 | 21FQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G3-21B3 - L13 Clam Gen 3 | 21B3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G3-21B4 - L13 Clam Gen 3 | 21B4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G4-21FG - L13 Clam Gen 4 | 21FG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G4-21FH - L13 Clam Gen 4 | 21FH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam-20R3 MT | 20R3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Clam-20R4 MT | 20R4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Yoga 2nd Generation-20VK MT 2020 | 20VK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga 2nd Generation-20VL MT 2020 | 20VL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G2-21AD - L13 Yoga Gen 2 | 21AD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G2-21AE - L13 Yoga Gen 2 | 21AE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G3-21BB - L13 Yoga Gen 3 | 21BB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G3-21BC - L13 Yoga Gen 3 | 21BC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G4-21FR - L13 Yoga AMD Gen 4 | 21FR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G4-21FS - L13 Yoga AMD Gen 4 | 21FS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G3-21B5 - L13 Yoga Gen 3 | 21B5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G3-21B6 - L13 Yoga Gen 3 | 21B6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G4-21FJ - L13 Yoga Gen 4 | 21FJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G4-21FK - L13 Yoga Gen 4 | 21FK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga-20R5 MT | 20R5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Yoga-20R6 MT | 20R6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G1-20U5 MT 2020 | 20U5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G1-20U6 MT 2020 | 20U6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G2-20X5 - L14 Gen 2 | 20X5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G2-20X6 - L14 Gen 2 | 20X6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G3-21C5 - L14 Gen 3 | 21C5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G3-21C6 - L14 Gen 3 | 21C6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G4-21H5 - L14 Gen 4 | 21H5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G4-21H6 - L14 Gen 4 | 21H6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G2-20X1 - L14 Gen 2 | 20X1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G2-20X2 - L14 Gen 2 | 20X2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G3-21C1 - L14 Gen 3 | 21C1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G3-21C2 - L14 Gen 3 | 21C2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G4-21H1 - L14 Gen 4 | 21H1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G4-21H2 - L14 Gen 4 | 21H2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G1-20U7 MT 2020 | 20U7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L15 AMD G1-20U8 MT 2020 | 20U8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L15 AMD G2-20X7 - L15 Gen 2 | 20X7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G2-20X8 - L15 Gen 2 | 20X8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G3-21C7 - L15 Gen 3 | 21C7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G3-21C8 - L15 Gen 3 | 21C8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G4-21H7 - L15 Gen 4 | 21H7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G4-21H8 - L15 Gen 4 | 21H8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G2-20X3 - L15 Gen 2 | 20X3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G2-20X4 - L15 Gen 2 | 20X4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G3-21C3 - L15 Gen 3 | 21C3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G3-21C4 - L15 Gen 3 | 21C4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G4-21H3 - L15 Gen 4 | 21H3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G4-21H4 - L15 Gen 4 | 21H4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L390-20NR MT | 20NR | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L390-20NS MT | 20NS | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L390-20NT MT | 20NT | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L390-20NU MT | 20NU | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L490-20Q5 MT | 20Q5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L490-20Q6 MT | 20Q6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L590-20Q7 MT | 20Q7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L590-20Q8 MT | 20Q8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Lenovo S700 Series-Lenovo Slim 7 16ARH7 | 82UX | |
| Lenovo S700 Series-Lenovo Slim 7 16IAH7 | 82VB | |
| Lenovo S700 Series-Lenovo Slim 7 ProX 14IAH7 | 82V1 | |
| Lenovo Slim 7 14IAP7-82SX - Lenovo Slim 7 14IAP7 | 82SX | |
| Lenovo Slim 9 14IAP7-82T1 - Lenovo Slim 9 14IAP7 | 82T1 | |
| P1 G5-21DC - P1 Gen 5 | 21DC | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 G5-21DD - P1 Gen 5 | 21DD | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 G6-21FV - P1 Gen 6 | 21FV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P1 G6-21FW - P1 Gen 6 | 21FW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s 2nd Generation-20VX MT 2021 | 20VX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s 2nd Generation-20VY MT 2021 | 20VY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G2-21A0 - P14s AMD Gen 2 | 21A0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G2-21A1 - P14s AMD Gen 2 | 21A1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G3-21AK MT 2022 | 21AK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G3-21AL MT 2022 | 21AL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G4-21HF - P14s Gen 4 | 21HF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G4-21HG - P14s Gen 4 | 21HG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 1st Generation-20T4 MT 2020 | 20T4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 1st Generation-20T5 MT 2020 | 20T5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 2nd Generation-20W6 - P15s Gen 2 | 20W6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 2nd Generation-20W7 - P15s Gen 2 | 20W7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15v AMD G3-21EM - P15v AMD Gen 3 | 21EM | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P15v AMD G3-21EN - P15v AMD Gen 3 | 21EN | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P15v G3-21D8 - P15v Gen 3 | 21D8 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P15v G3-21D9 - P15v Gen 3 | 21D9 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P16 G1-21D6 - P16 Gen 1 | 21D6 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P16s AMD G1-21CK - P16s AMD Gen 1 | 21CK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P16s AMD G1-21CL - P16s AMD Gen 1 | 21CL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P43s-20RH MT | 20RH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P43s-20RJ MT | 20RJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P53s-20N7 MT | 20N7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W0 MT 2021 | 20W0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W1 MT 2021 | 20W1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W2 MT 2021 HC | 20W2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W3 MT 2021 HC | 20W3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G1-20UD MT 2020 | 20UD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G1-20UE MT 2020 | 20UE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G2-20XK - T14 AMD Gen 2 | 20XK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G2-20XL - T14 AMD Gen 2 | 20XL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G3-21CF - T14 AMD Gen 3 | 21CF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G3-21CG - T14 AMD Gen 3 | 21CG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G3-21AJ - T14 Gen 3 | 21AJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G4-21HD - T14 Gen 4 | 21HD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G4-21HE - T14 Gen 4 | 21HE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s 2nd Generation-20WM - T14s Gen 2 | 20WM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G1-20UH MT 2020 | 20UH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G1-20UJ MT 2020 | 20UJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G2-20XF - T14s AMD Gen 2 | 20XF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G2-20XG - T14s AMD Gen 2 | 20XG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G3-21CQ - T14s AMD Gen 3 | 21CQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G3-21CR - T14s AMD Gen 3 | 21CR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G3-21BS - T14s Gen 3 | 21BS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G4-21F6 - T14s Gen 4 | 21F6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G4-21F7 - T14s Gen 4 | 21F7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15 2nd Generation-20W4 - T15 Gen 2 | 20W4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15 2nd Generation-20W5 - T15 Gen 2 | 20W5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15p G3-21DA - T15p Gen 3 | 21DA | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| T15p G3-21DB - T15p Gen 3 | 21DB | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| T16 AMD G1-21CJ - T16 AMD Gen 1 | 21CJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T16 G1-21BV - T16 Gen 1 | 21BV | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| T16 G1-21BW - T16 Gen 1 | 21BW | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| T16 G2-21HH - T16 Gen 2 | 21HH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T16 G2-21HJ - T16 Gen 2 | 21HJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T490-20N2 MT | 20N2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T490-20N3 MT | 20N3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T490s-20NX MT | 20NX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T490s-20NY MT | 20NY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T590-20N4 MT | 20N4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T590-20N5 MT | 20N5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkBook 13s G4 ARB-21AS - ThinkBook 13s G4 ARB | 21AS | |
| ThinkBook 13x G2 IAP-21AT - ThinkBook 13x G2 IAP | 21AT | |
| ThinkBook 14 G4 IAP-21DH - ThinkBook 14 G4 IAP | 21DH | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode not support MAC address pass through support, power button mirror in system S3/S4/S5 support |
| ThinkBook 15 3rd Generation - ACL-MT 21A4 ThinkBook 15 G3 ACL | 21A4 | |
| ThinkBook 15 G4 ABA-21DL - ThinkBook 15 G4 ABA | 21DL | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode not support MAC address pass through support, power button mirror in system S3/S4/S5 support |
| ThinkBook 15p G2 ITH-21B1 - ThinkBook 15p G2 ITH | 21B1 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook 16 G4+ IAP-21CY - ThinkBook 16 G4+ IAP | 21CY | |
| ThinkBook Plus G3 IAP-21EL - ThinkBook Plus G3 IAP | 21EL | |
| ThinkBook Series (Perfomance)-ThinkBook 14p G3 ARH | 21EJ | |
| ThinkBook Series (Perfomance)-ThinkBook 16p NX ARH | 21EV | |
| ThinkBook Series (Perfomance)-ThinkBook 16p NX IAP | 21EU | |
| ThinkBook Slim Series-ThinkBook 13s G4 IAP | 21AR | |
| ThinkBook Yoga Series-ThinkBook 14s Yoga G2 IAP | 21DM | |
| ThinkPad L14-20U1 MT 2020 | 20U1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L14-20U2 MT 2020 | 20U2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L15-20U3 MT 2020 | 20U3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L15-20U4 MT 2020 | 20U4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad P Series-P53s | 20N6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P14s-20S4 MT 2020 | 20S4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P14s-20S5 MT 2020 | 20S5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P16 Series-P16 G1 | 21D7 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P16 Series-P16 G2 | 21FA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s G1 | 21BT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s G2 | 21HK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16v G1 | 21FC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G3 | 21AH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14s 2nd Generation | 20WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14s G3 | 21BR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S0 MT 2020 | 20S0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S1 MT 2020 | 20S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S2 MT 2020 HC | 20S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S3 MT 2020 HC | 20S3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14s-20T0 MT 2020 | 20T0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14s-20T1 MT 2020 | 20T1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T15-20S6 MT 2020 | 20S6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T15-20S7 MT 2020 | 20S7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T16 Series-T16 AMD G1 | 21CH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 AMD G3 | 21CN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 Yoga G3 | 21AW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad Z16 Series-Z16 AMD G1 | 21D4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| Thinkbook Series-ThinkBook 14 2nd Generation-ITL | 20VD | |
| Thinkbook Series-ThinkBook 14 3rd Generation - ACL | 21A2 | |
| Thinkbook Series-ThinkBook 14 G4 ABA | 21DK | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode not support MAC address pass through support, power button mirror in system S3/S4/S5 support |
| Thinkbook Series-ThinkBook 14 G4+ ARA | 21D0 | |
| Thinkbook Series-ThinkBook 14 G4+ IAP | 21CX | |
| Thinkbook Series-ThinkBook 15 2nd Generation-ITL | 20VE | |
| Thinkbook Series-ThinkBook 15 G4 IAP | 21DJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode not support MAC address pass through support, power button mirror in system S3/S4/S5 support |
| Thinkbook Series-ThinkBook 16 G4+ ARA | 21D1 | |
| X1 Carbon 7th Generation-20QD MT | 20QD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 7th Generation-20QE MT | 20QE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 7th Generation-20R1 MT | 20R1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 7th Generation-20R2 MT | 20R2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 8th Generation-20U9 MT 2020 | 20U9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 8th Generation-20UA MT 2020 | 20UA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XW - X1 Carbon Gen 9 | 20XW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XX - X1 Carbon Gen 9 | 20XX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G10-21CB - X1 Carbon Gen 10 | 21CB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G10-21CC - X1 Carbon Gen 10 | 21CC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G11-21HM - X1 Carbon Gen 11 | 21HM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G11-21HN - X1 Carbon Gen 11 | 21HN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme G5-21DE - X1 Extreme Gen 5 | 21DE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme G5-21DF - X1 Extreme Gen 5 | 21DF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Fold 16 G1-21ES - X1 Fold 16 Gen 1 | 21ES | PXE boot supported.MAC address pass through supported |
| X1 Fold 16 G1-21ET - X1 Fold 16 Gen 1 | 21ET | PXE boot supported.MAC address pass through supported |
| X1 Nano G2-21E8 - X1 Nano Gen 2 | 21E8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano G2-21E9 - X1 Nano Gen 2 | 21E9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano-20UN MT 2020 | 20UN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano-20UQ MT 2020 | 20UQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QA MT 2020 | 20QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QB MT 2020 | 20QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20QF MT | 20QF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20QG MT | 20QG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20SA MT | 20SA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20SB MT | 20SB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 5th Generation-20UB MT 2020 | 20UB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 5th Generation-20UC MT 2020 | 20UC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20XY - X1 Yoga Gen 6 | 20XY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20Y0 - X1 Yoga Gen 6 | 20Y0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G7-21CD - X1 Yoga Gen 7 | 21CD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G7-21CE - X1 Yoga Gen 7 | 21CE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G8-21HQ - X1 Yoga Gen 8 | 21HQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G8-21HR - X1 Yoga Gen 8 | 21HR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X12 Detachable 1st Generation-20UV MT 2020 | 20UV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X12 Detachable 1st Generation-20UW MT 2020 | 20UW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G1-20UF MT 2020 | 20UF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G1-20UG MT 2020 | 20UG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G2-20XH - X13 AMD Gen 2 | 20XH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G2-20XJ - X13 AMD Gen 2 | 20XJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G3-21CM - X13 AMD Gen 3 | 21CM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G1-20T2 MT 2020 | 20T2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G1-20T3 MT 2020 | 20T3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G2-20WK - X13 Gen 2 | 20WK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G2-20WL - X13 Gen 2 | 20WL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G3-21BN - X13 Gen 3 | 21BN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G3-21BQ - X13 Gen 3 | 21BQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G4-21EX - X13 Gen 4 | 21EX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G4-21EY - X13 Gen 4 | 21EY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga 2nd Generation-20W8 MT 2021 | 20W8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga 2nd Generation-20W9 MT 2021 | 20W9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G3-21AX - X13 Yoga Gen 3 | 21AX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G4-21F2 - X13 Yoga Gen 4 | 21F2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G4-21F3 - X13 Yoga Gen 4 | 21F3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga-20SX MT 2020 | 20SX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga-20SY MT 2020 | 20SY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13s G1-21BX - X13s Gen 1 | 21BX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13s G1-21BY - X13s Gen 1 | 21BY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X390-20Q0 MT | 20Q0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X390-20Q1 MT | 20Q1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X390-20SC MT | 20SC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X390-20SD MT | 20SD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Yoga S600 Series-Yoga Slim 6 14IAP8 | 82WU | |
| Yoga S600 Series-Yoga Slim 6 14IRP8 | 82WV | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IAH7 | 82UT | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IAP7 | 82SV | |
| Yoga S700 Series-Yoga Slim 7 Pro 16ACH6 | 82QQ | |
| Yoga S700 Series-Yoga Slim 7 Pro 16ARH7 | 82UW | |
| Yoga S700 Series-Yoga Slim 7 Pro 16IAH7 | 82VA | |
| Yoga S700 Series-Yoga Slim 7 ProX 14IAH7 | 82TK | |
| Yoga S900 Series-Yoga Slim 9 14IAP7 | 82T0 | |
| Z13 AMD G1-21D2 - Z13 Gen 1 | 21D2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Z13 AMD G1-21D3 - Z13 Gen 1 | 21D3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Z16 AMD G1-21D5 - Z16 Gen 1 | 21D5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| Product Name | Lenovo Dock ThinkPad Universal USB-C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Lenovo ThinkPad Universal USB-C DockINTELLIGENTER ARBEITEN Vorstellung des ThinkPad Universal USB-C-Dock. Mit dieser fortschrittlichen, universell kompatiblen Ein-Kabel-Docking-Lösung können Sie intelligenter und nicht härter arbeiten. Sie bietet eine große Auswahl an Anschlüssen, Plug-and-Play-Funktionalität der nächsten Generation und Schnellladefunktionen (bis zu 100 W für die meisten USB-C-Notebooks*). Sie ist intelligent genug, um wichtige Firmwareaktualisierungen automatisch zu installieren. Sie eignet sich optimal für eine gemischte PC-Umgebung und die Arbeit zu Hause. Zudem haben Sie die Möglichkeit, mehr zu tun. ;; * Das 90-W-Netzteil lädt ThinkPad und andere USB-C-Notebooks bis zu 65 W. Zum Laden mit 100 W ist ein optionales Slim Tip 135-W-Netzteil erforderlich (PN: 4X20E50558 (US)/4X20E505xx). Separat erhältlich.
Top Features
What's in the Box
Technische Daten
Compatible Machines Stand 2023
|
