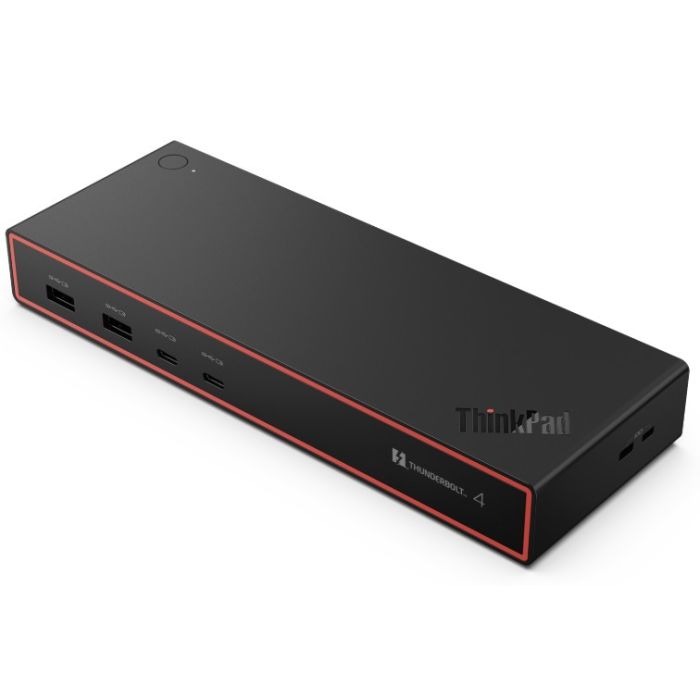

New Generation ThinkPad® Thunderbolt™ 4 Dock; The ThinkPad® Thunderbolt™ 4 Dock Gen 2 7000 is a refresh of its Thunderbolt™ 4 Dock Predecessor, Best for business professionals, IT decision-makers, and creative professionals who need Premium PC experience with multiple displays setup, secure and reliable connections for intensive tasks. Capable of driving up to 8K 60Hz display and 40Gbps data speed
| Agency Approvals | FCC/ICES,CE,KCC,RCM,BSMI,NCC,VCCI,CB,cULus,EAC,TUV-Mark,LoA,Ukraine DoC,NOM,IFT,TELEC,UKCA,FAC DoC,VNTA,WPC ETA,SRRC,SDPPI,IMDA,SIRIM,NBTC, SUBTEL,KVALITET/RATEL,MCIT,ANRT,UCC,INACOM,CITRA,TRA,NTC,PSRC,NCA,ARTCI,INCM,Thunderbolt Cert.,EVO |
| Warranty Type | Customer Replaceable Unit |
| Warranty Period | 3 Year |
| Maximum Relative Humidity (%) | 95% (no Condensation) |
| Minimum Relative Humidity (%) | 20% |
| Maximum Operating Temperature | 40℃ |
| Minimum Operating Temperature | 0℃ |
| Packed Dimensions (L x D x H) | 237.8 mm x 141 mm x 75.8 mm (9.36 in x 5.55 in x 2.98 in) |
| Package Type | Brown Box |
| Shipment Group | 1 x ThinkPad Thunderbolt 4 Gen2 7000 1 x Power Adaptor 1 x Power Cord 3 x Documentation |
| Product Weight | 547.5 g (1.21 lb) |
| Height | 30 mm (1.18 in) |
| Depth | 80 mm (3.15 in) |
| Length | 220 mm (8.66 in) |
| Thunderbolt Port | 1 |
| Color | Eclipse Black |
| Power Plug | Yes |
| Power Button | Yes |
| Output Power | 100 W |
| Power Delivery | PD 3.1 |
| Input Power | 135 W |
| Charging Port | USB Type-C |
| Maximum Resolution/Refresh Rate | 8K / 60Hz |
| Max Number of External Monitors | 4 |
| Physical Security Feature | MicroSaver Lock NanoSaver Lock |
| Ethernet | 2.5Gbps |

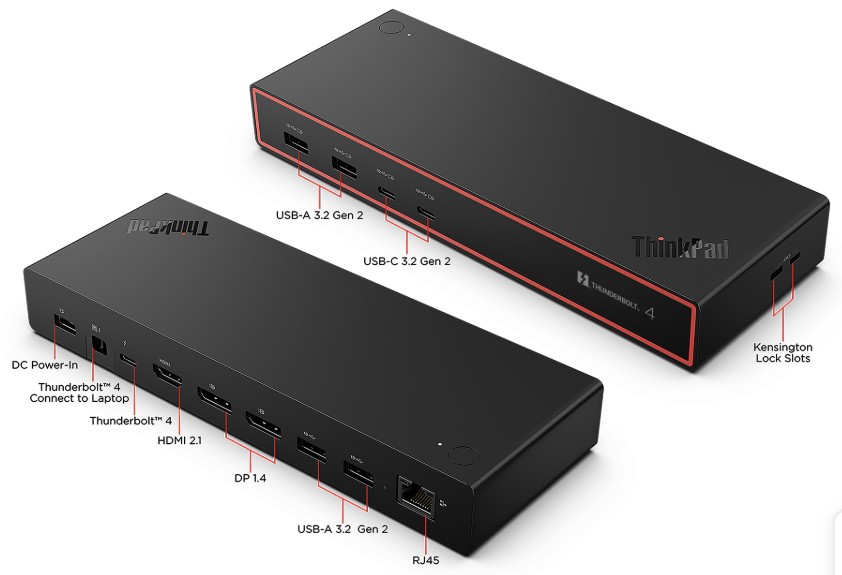

| USB Ports | Front: 2 x USB-A 3.2 Gen2 (2 x AOU 12W) 2 x USB-C 3.2 Gen2 (2 x AOU 15W) Back: 2 x USB-A 3.2 Gen2 5W 1 x TBT 4 Full Function 15W |
| Video Ports | 2 x DP 1.4 1 x HDMI 2.1 1 x TBT 4 Full Function |
| Supported OS | Windows, macOS, Linux |
| Brand | ThinkPad |
Compatible Machines
| Description | ID | Footnote |
| ThinkPad E14 Series-E14 G8 | 21Y6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21Y7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E15 Series-E15 AMD G4 | 21ED | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad E16 series-E16 G4 | 21YC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21YD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 AMD 2-in-1 G6 | 21RE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad L13 Series-L13 G6 | 21R5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21R6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 G7 | 21XR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21XS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G6 | 21S6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21S7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G7 | 21X2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21X3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L16 Series-L16 G2 | 21SA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21SB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G6 | 21QL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21RV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21RW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G6 | 21QT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s G4 | 21QV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G6 | 21QJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G6 | 21QC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21QG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21QH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G7 | 21WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21WQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s 2-in-1 G1 | 21R3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21R4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G6 | 21TB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21TC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 AMD G4 | 21QN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 G4 | 21QE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 22AW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 22AX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 2-in-1 G10 | 21NU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21NV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21Q0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21Q1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G13 | 21NS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21NT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21NX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21NY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G14 | 21V7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21V8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G6 | 21RK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21RL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X9-ThinkPad X9-14 G1 | 21QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X9-ThinkPad X9-15 G1 | 21Q6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21Q7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Product Name | Lenovo Dock Thunderbolt 4 Gen 2 7000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Lenovo ThinkPad Thunderbolt 4 Dock Gen2 7000-EU/GENew Generation ThinkPad® Thunderbolt™ 4 Dock; The ThinkPad® Thunderbolt™ 4 Dock Gen 2 7000 is a refresh of its Thunderbolt™ 4 Dock Predecessor, Best for business professionals, IT decision-makers, and creative professionals who need Premium PC experience with multiple displays setup, secure and reliable connections for intensive tasks. Capable of driving up to 8K 60Hz display and 40Gbps data speed
