Premium Thunderbolt™ 4 Docking-Lösung: Das ThinkPad Thunderbolt 4 Workstation Dock bietet zuverlässige und konsistente branchenführende Video-, Daten- und Stromkonnektivität; Maximale Produktivität: Erweitern Sie Ihren Horizont mit vielseitiger Unterstützung für 8K-Displays oder mehrere 4K-Displays, geräuscharmen Firmwareaktualisierungen, bis zu 230 W Stromversorgung zur Workstation, VPro/AMT-Unterstützung und einer blitzschnellen 40 Gbit/s-Datenübertragung.; Das ThinkPad Thunderbolt 4 Workstation Dock ist zukunftssicher und bereit, Ihre Produktivität, Effizienz und Kreativität maximal zu steigern.
Verpackungsinhalt
ThinkPad Thunderbolt 4 WorkStation Dock
300 W Netzteil
Netzkabel
Standard-Thunderbolt-Kabel
Garantieunterlagen
Abmessungen und Gewicht
Höhe 30 mm, Breite 220 mm, Tiefe 80 mm, Gewicht: 450 g
Umgebung
Luftfeuchtigkeit max. Luftfeuchtigkeit 95 % , Min. Temperaturbereich 0° - +40° C
Supported Operating Systems
Windows 10 64-Bit, Windows 11 64-Bit

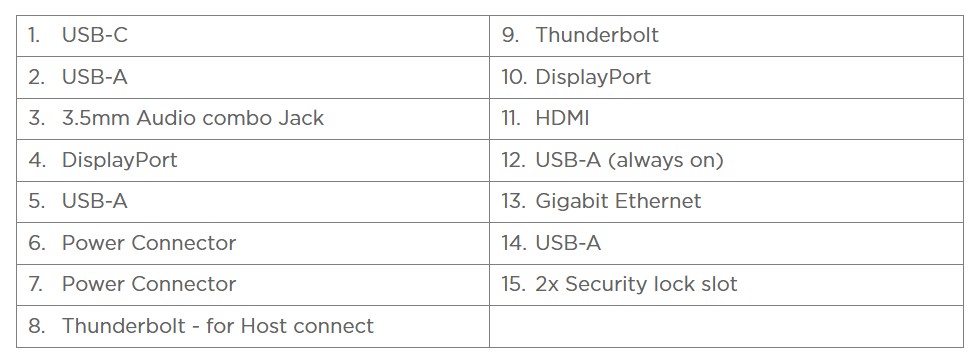

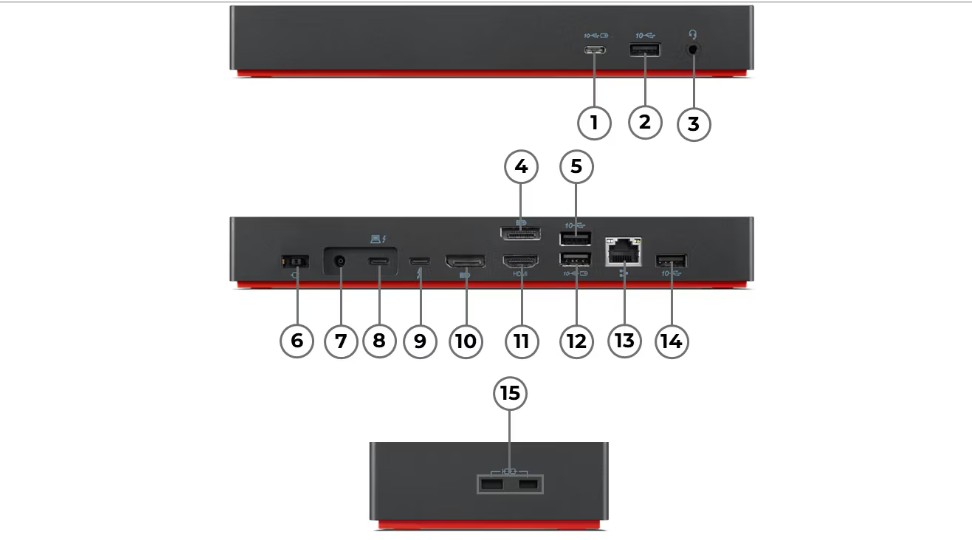

Schnittstellen
2 x DisplayPort 1.4
1 x HDMI 2.1
1 x Thunderbolt-Anschluss – für Hostverbindung
1 x Thunderbolt-Anschluss – für Geräteverbindung
4 x USB-A
1 x USB-C
1 x Gigabit Ethernet
1 x 3,5 mm Audio-Kombianschluss
1 x Schlitz für NanoSaver-Schloss
1 x Schlitz für MicroSaver-Schloss
Input/Output Power
Input: 20 V 15 A
Output: Max. 230 W
Anschluss Voraussetzungen
Host mit USB-C/Thunderbolt-Anschluss
Maximum Resolution/Refresh Rate
1 x 8K 30 Hz via HDMI 2.1 4 x 4K, 60 Hz
Max Number of External Monitors
4
Garantiezeitraum
Drei Jahre Herstellgarantie
| Description | ID | Footnote |
| L13 Clam AMD G2-21AC - L13 Clam Gen 2 | 21AC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G2-20X2 - L14 Gen 2 | 20X2 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L15 G2-20X3 - L15 Gen 2 | 20X3 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L15 G2-20X4 - L15 Gen 2 | 20X4 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| P14s 2nd Generation-20VY MT 2021 | 20VY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y1 - P14s AMD Gen 1 | 20Y1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y2 - P14s AMD Gen 1 | 20Y2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkBook Plus Series-ThinkBook Plus G3 IAP | 21EL | |
| ThinkBook Plus Series-ThinkBook Plus G4 IRU | 21JJ | |
| ThinkBook Series (Perfomance)-ThinkBook 14p G3 ARH | 21EJ | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 15p G2 ITH | 21B1 | |
| ThinkBook Series (Perfomance)-ThinkBook 16p NX ARH | 21EV | |
| ThinkBook Series (Perfomance)-family not used | 21EU | |
| ThinkBook Slim Series-ThinkBook 13s G4 ARB | 21AS | |
| ThinkBook Slim Series-ThinkBook 13s G4 IAP | 21AR | |
| ThinkBook Slim Series-ThinkBook 13s G5 IRP | 21JA | |
| ThinkBook X series-ThinkBook 13x G2 IAP | 21AT | |
| ThinkBook Yoga Series-ThinkBook 14s Yoga G2 IAP | 21DM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkBook Yoga Series-ThinkBook 14s Yoga G3 IRU | 21JG | |
| ThinkCentre M Traditional Desktop Series-NEC Canopus-IR-LV | 12H5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad E14 Series-E14 AMD G5 | 21JR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 G4 | 21E3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 G5 | 21JK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E15 Series-E15 G4 | 21E6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E16 series-E16 AMD G1 | 21JT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E16 series-E16 G1 | 21JN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 2-in-1 G5 | 21LM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam | 20R3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20R4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L13 Series-L13 Clam 2nd Generation | 20VH | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| 20VJ | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through | |
| ThinkPad L13 Series-L13 Clam AMD G2 | 21AB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad L13 Series-L13 Clam AMD G3 | 21B9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam AMD G4 | 21FN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam G3 | 21B3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21B4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam G4 | 21FG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam G5 | 21LB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga | 20R5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20R6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L13 Series-L13 Yoga 2nd Generation | 20VK | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| 20VL | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G2 | 21AD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G3 | 21BB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G4 | 21FR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga G3 | 21B5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21B6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga G4 | 21FJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G1 | 20U5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L14 Series-L14 AMD G2 | 20X5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20X6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G3 | 21C5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G4 | 21H5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G5 | 21L5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G2 | 20X1 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| ThinkPad L14 Series-L14 G3 | 21C1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G4 | 21H1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G5 | 21L1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-ThinkPad L14 | 20U1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L15 Series-L15 AMD G1 | 20U7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L15 Series-L15 AMD G2 | 20X7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20X8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 AMD G3 | 21C7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 AMD G4 | 21H7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 G3 | 21C3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 G4 | 21H3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-ThinkPad L15 | 20U3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L16 Series-L16 AMD G1 | 21L7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L16 Series-L16 G1 | 21L3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P1 Series-P1 G4 | 20Y3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20Y4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P1 Series-P1 G5 | 21DC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21DD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P1 Series-P1 G6 | 21FV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P1 Series-P1 G7 | 21KV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P1 Series-ThinkPad P1 3rd Generation | 20TH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20TJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s 2nd Generation | 20VX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P14 Series-P14s AMD G2 | 21A0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21A1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G3 | 21J5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21J6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G4 | 21K5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G5 | 21ME | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G3 | 21AK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G4 | 21HF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G5 | 21G2 | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21G3 | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P15 Series-P15 G2 | 20YQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20YR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15s 2nd Generation | 20W6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15v AMD G3 | 21EM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21EN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15v G2 | 21A9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15v G3 | 21D8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21D9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-T15p G2 | 21A7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21A8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-T15p G3 | 21DA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21DB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-ThinkPad P15 | 20ST | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| ThinkPad P15 Series-ThinkPad P15g | 20UR | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| 20US | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 | |
| ThinkPad P15 Series-ThinkPad P15v | 20TQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20TR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15-20SU MT 2020 | 20SU | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| ThinkPad P16 Series-P16 G1 | 21D6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21D7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16 G2 | 21FA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s AMD G1 | 21CK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s AMD G2 | 21K9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s G1 | 21BT | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21BU | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16s G2 | 21HK | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21HL | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16s G3 | 21KS | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21KT | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16v AMD G1 | 21FE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16v G1 | 21FC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16v G2 | 21KX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P17 Series-P17 G2 | 20YU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20YV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P17 Series-ThinkPad P17 | 20SN | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 |
| 20SQ | 1.Make sure to connect dock with system TBT port; 2.Dock Power button power on system and WOL from S4/S5 plug in dock function ready in Dec.2021 | |
| ThinkPad T14 Series-T14 2nd Generation | 20W0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20W2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20W3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G1 | 20UD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G2 | 20XK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14 AMD G3 | 21CF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G4 | 21K3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G5 | 21MC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G3 | 21AH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G4 | 21HD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G5 | 21ML | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s 2nd Generation | 20WM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G1 | 20UH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G2 | 20XF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G4 | 21F8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21F9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G3 | 21BR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G4 | 21F6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21F7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G5 | 21LS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s Snapdragon G6 | 21N1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21N2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-ThinkPad T14 | 20S0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20S3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-ThinkPad T14s | 20T0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20T1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-T15 2nd Generation | 20W4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-T15g G2 | 20YS | Nvidia graphic driver is not ready to support 8K display from HDMI2.1 port. Target to enable by September 2023. |
| 20YT | Nvidia graphic driver is not ready to support 8K display from HDMI2.1 port. Target to enable by September 2023. | |
| ThinkPad T15 Series-ThinkPad T15 | 20S6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20S7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-ThinkPad T15p | 20TM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20TN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 AMD G1 | 21CH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 AMD G2 | 21K7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 G1 | 21BV | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21BW | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad T16 Series-T16 G2 | 21HH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 G3 | 21MN | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21MQ | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad X1 series-X1 2-in-1 G9 | 21KE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon 8th Generation | 20U9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon 9th Generation | 20XW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G10 | 21CB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G11 | 21HM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G12 | 21KC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Extreme 3rd Generation | 20TK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20TL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Extreme G4 | 20Y5 | dGPU model 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 |
| 20Y6 | dGPU model 8K display support from Dock HDMI 2.1 port not ready yet, target to support in Feb.2022 | |
| ThinkPad X1 series-X1 Extreme G5 | 21DE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21DF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Fold 16 G1 | 21ES | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21ET | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano | 20UN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano G2 | 21E8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano G3 | 21K1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Titanium G1 | 20QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga 5th Generation | 20UB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga 6th Generation | 20XY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20Y0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga G7 | 21CD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga G8 | 21HQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X12 Series-X12 Detachable 1st Generation | 20UV | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| 20UW | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through | |
| ThinkPad X12 Series-X12 Detachable G2 | 21LK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 2-in-1 G5 | 21LW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G1 | 20UF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 AMD G2 | 20XH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G3 | 21CM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G4 | 21J3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21J4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G1 | 20T2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20T3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G2 | 20WK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20WL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G3 | 21BN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G4 | 21EX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21EY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G5 | 21LU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga 2nd Generation | 20W8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga G3 | 21AW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga G4 | 21F2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21F3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13s G1 | 21BX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z13 Series-Z13 AMD G1 | 21D2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21D3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z13 Series-Z13 AMD G2 | 21JV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z16 Series-Z16 AMD G1 | 21D4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21D5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad Z16 Series-Z16 AMD G2 | 21JX | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21JY | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| Thinkbook Series-ThinkBook 14 G4 ABA | 21DK | |
| Thinkbook Series-ThinkBook 14 G4 IAP | 21DH | |
| Thinkbook Series-ThinkBook 14 G4+ ARA | 21D0 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 14 G4+ IAP | 21CX | |
| Thinkbook Series-ThinkBook 14 G5 ABP | 21JE | |
| Thinkbook Series-ThinkBook 14 G5 IRL | 21JC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 G6 ABP | 21KJ | |
| Thinkbook Series-ThinkBook 14 G6 IRL | 21KG | |
| Thinkbook Series-ThinkBook 14 G6 IRL Brazil | 21NQ | |
| Thinkbook Series-ThinkBook 15 G4 ABA | 21DL | |
| Thinkbook Series-ThinkBook 15 G4 IAP | 21DJ | |
| Thinkbook Series-ThinkBook 15 G5 ABP | 21JF | |
| Thinkbook Series-ThinkBook 15 G5 IRL | 21JD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 16 G4+ ARA | 21D1 | |
| Thinkbook Series-ThinkBook 16 G4+ IAP | 21CY | |
| Thinkbook Series-ThinkBook 16 G6 ABP | 21KK | |
| Thinkbook Series-ThinkBook 16 G6 IRL | 21KH | |
| Thinkbook Series-ThinkBook 16 G6 IRL Brazil | 21NR | |
| Thinkbook Series-ThinkBook 16 G7 IML | 21MS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21ND | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Product Name | Lenovo Dock Thunderbolt 4 Workstat. 300W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Lenovo ThinkPad Thunderbolt 4 Workstation Dock - EU/INA/VIE/ROKPremium Thunderbolt™ 4 Docking-Lösung: Das ThinkPad Thunderbolt 4 Workstation Dock bietet zuverlässige und konsistente branchenführende Video-, Daten- und Stromkonnektivität; Maximale Produktivität: Erweitern Sie Ihren Horizont mit vielseitiger Unterstützung für 8K-Displays oder mehrere 4K-Displays, geräuscharmen Firmwareaktualisierungen, bis zu 230 W Stromversorgung zur Workstation, VPro/AMT-Unterstützung und einer blitzschnellen 40 Gbit/s-Datenübertragung.; Das ThinkPad Thunderbolt 4 Workstation Dock ist zukunftssicher und bereit, Ihre Produktivität, Effizienz und Kreativität maximal zu steigern.
Top Features
Verpackungsinhalt
Technische Daten
Compatible Machines
Stand: August 2024
|
