Universal Thunderbolt™ 4-Andockstation auf Unternehmensniveau: Die ThinkPad Universal Thunderbolt 4 Dock bietet zuverlässige und konsistente, branchenweit führende Konnektivität für Video, Daten und Strom in einer Windows-basierten gemischten PC-Umgebung. ; Maximale Produktivität: Erweitern Sie Ihren Horizont mit vielseitiger Unterstützung für 8K-Displays oder mehrere 4K-Displays, geräuscharmen Firmwareaktualisierungen, VPro/AMT-Unterstützung und einer blitzschnellen 40 Gb/s-Datenübertragung. ; Die ThinkPad Universal Thunderbolt 4 ist zukunftssicher und bereit, Ihre Produktivität, Effizienz und Kreativität maximal zu steigern.
What's in the Box
135-Watt-Netzteil, 1 x Netzkabel, Standard-Thunderbolt-Kabel
| USB Ports | 4 x USB 3.2 Gen 2 (1 Always-on) 1 x USB-C |
| EAN | 0195348677325 |
| Supported OS | Win10 64, Win 11 64 |
| Minimum Relative Humidity (%) | 0.1 |
| Maximum Relative Humidity (%) | 95% |
| JAN | 4580551376145 |
| UPC | 195348677325 |
| Warranty Type | CRU |
| Warranty Period | 3 Jahre |
| Maximum Operating Temperature | 40 Grad Celsius |
| Minimum Operating Temperature | 0 Grad Celsius |
| Packed Weight | 1,2 kg |
| Packed Dimensions (L x D x H) | 270 x 195 x 85 mm |
| Package Type | Neutrale Kartonverpackung |
| Shipment Group | ThinkPad Universal TBT 4 Dock 135 W-Netzteil Netzkabel Setup-/Installationsanleitung und Garantieunterlagen Standard-TBT 4-Kabel |
| Included Accessory | 135-Watt-Netzteil, 1 x Netzkabel, Standard-Thunderbolt-Kabel |
| Product Weight | 0,45 kg |
| Height | 30 mm |
| Depth | 80 mm |
| Length | 220 mm |
| Driver Needed | Ja |
| Hardware Requirements | Host mit USB-C/Thunderbolt-Anschluss |
| Agency Approvals | CE-EMC, TÜV-Zeichen, KCC, Serbia Kvalitet, CU EAC |
| Color | Schwarz/Rot |
| Power Plug | Flachstecker |
| Power Button | Ja |
| Output Power | Max. 100 W |
| Power Delivery | Ja |
| Input Power | 20 V, 6,75 A |
| Charging Port | DC-IN |
| Maximum Resolution/Refresh Rate | 1 x 8K 30 Hz via HDMI 2.1 4 x 4K, 60 Hz |
| Max Number of External Monitors | 4 |
| Physical Security Feature | 1 x Schlitz für NanoSaver-Schloss 1 x Schlitz für MicroSaver-Schloss |
| Ethernet | 1 x Gigabit-Ethernet |
| Audio Ports | 1 x 3,5 mm Audio-Kombianschluss |
| Video Ports | 1 x HDMI 2.1 2 x DisplayPort 1.4 |
| Thunderbolt Port | 1 x Thunderbolt-Anschluss – für Hostverbindung 1 x Thunderbolt-Anschluss – für Geräteverbindung |
| Brand | ThinkPad |
| Description | ID | Footnote |
| E14 G4-21E3 - E14 Gen 4 | 21E3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 G4-21E4 - E14 Gen 4 | 21E4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G4-21E6 - E15 Gen 4 | 21E6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G4-21E7 - E15 Gen 4 | 21E7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| IdeaPad Flex 7 14IAU7-82VC - IdeaPad Flex 7 14IAU7 | 82VC | |
| L13 Clam 2nd Generation-20VH MT 2020 | 20VH | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Clam 2nd Generation-20VJ MT 2020 | 20VJ | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Clam AMD G3-21B9 - L13 Clam Gen 3 | 21B9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G3-21BA - L13 Clam Gen 3 | 21BA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G4-21FN - L13 Clam AMD Gen 4 | 21FN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G4-21FQ - L13 Clam AMD Gen 4 | 21FQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G3-21B3 - L13 Clam Gen 3 | 21B3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G3-21B4 - L13 Clam Gen 3 | 21B4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G4-21FG - L13 Clam Gen 4 | 21FG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G4-21FH - L13 Clam Gen 4 | 21FH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam-20R3 MT | 20R3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Clam-20R4 MT | 20R4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Yoga 2nd Generation-20VK MT 2020 | 20VK | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Yoga 2nd Generation-20VL MT 2020 | 20VL | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L13 Yoga AMD G3-21BB - L13 Yoga Gen 3 | 21BB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G3-21BC - L13 Yoga Gen 3 | 21BC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G4-21FR - L13 Yoga AMD Gen 4 | 21FR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G4-21FS - L13 Yoga AMD Gen 4 | 21FS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G3-21B5 - L13 Yoga Gen 3 | 21B5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G3-21B6 - L13 Yoga Gen 3 | 21B6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G4-21FJ - L13 Yoga Gen 4 | 21FJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G4-21FK - L13 Yoga Gen 4 | 21FK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga-20R5 MT | 20R5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Yoga-20R6 MT | 20R6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G1-20U5 MT 2020 | 20U5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G1-20U6 MT 2020 | 20U6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G3-21C5 - L14 Gen 3 | 21C5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G3-21C6 - L14 Gen 3 | 21C6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G4-21H5 - L14 Gen 4 | 21H5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G4-21H6 - L14 Gen 4 | 21H6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G2-20X1 - L14 Gen 2 | 20X1 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L14 G2-20X2 - L14 Gen 2 | 20X2 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L14 G3-21C1 - L14 Gen 3 | 21C1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G3-21C2 - L14 Gen 3 | 21C2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G4-21H1 - L14 Gen 4 | 21H1 | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| L14 G4-21H2 - L14 Gen 4 | 21H2 | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| L15 AMD G1-20U7 MT 2020 | 20U7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L15 AMD G1-20U8 MT 2020 | 20U8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L15 AMD G3-21C7 - L15 Gen 3 | 21C7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G3-21C8 - L15 Gen 3 | 21C8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G4-21H7 - L15 Gen 4 | 21H7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G4-21H8 - L15 Gen 4 | 21H8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G2-20X3 - L15 Gen 2 | 20X3 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L15 G2-20X4 - L15 Gen 2 | 20X4 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| L15 G3-21C3 - L15 Gen 3 | 21C3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G3-21C4 - L15 Gen 3 | 21C4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G4-21H3 - L15 Gen 4 | 21H3 | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| L15 G4-21H4 - L15 Gen 4 | 21H4 | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| P1 G6-21FV - P1 Gen 6 | 21FV | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 G6-21FW - P1 Gen 6 | 21FW | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P14s 2nd Generation-20VX MT 2021 | 20VX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s 2nd Generation-20VY MT 2021 | 20VY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y1 - P14s AMD Gen 1 | 20Y1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y2 - P14s AMD Gen 1 | 20Y2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G3-21AK MT 2022 | 21AK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G3-21AL MT 2022 | 21AL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G4-21HF - P14s Gen 4 | 21HF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G4-21HG - P14s Gen 4 | 21HG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 2nd Generation-20W6 - P15s Gen 2 | 20W6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 2nd Generation-20W7 - P15s Gen 2 | 20W7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P16s AMD G1-21CK - P16s AMD Gen 1 | 21CK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P16s AMD G1-21CL - P16s AMD Gen 1 | 21CL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P16v AMD G1-21FE - P16v AMD Gen 1 | 21FE | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P16v AMD G1-21FF - P16v AMD Gen 1 | 21FF | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| T14 2nd Generation-20W0 MT 2021 | 20W0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W1 MT 2021 | 20W1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W2 MT 2021 HC | 20W2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W3 MT 2021 HC | 20W3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G1-20UD MT 2020 | 20UD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G1-20UE MT 2020 | 20UE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G3-21CF - T14 AMD Gen 3 | 21CF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G3-21CG - T14 AMD Gen 3 | 21CG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G3-21AJ - T14 Gen 3 | 21AJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G4-21HD - T14 Gen 4 | 21HD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G4-21HE - T14 Gen 4 | 21HE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s 2nd Generation-20WM - T14s Gen 2 | 20WM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G3-21BS - T14s Gen 3 | 21BS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G4-21F6 - T14s Gen 4 | 21F6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G4-21F7 - T14s Gen 4 | 21F7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15 2nd Generation-20W4 - T15 Gen 2 | 20W4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15 2nd Generation-20W5 - T15 Gen 2 | 20W5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T16 AMD G1-21CJ - T16 AMD Gen 1 | 21CJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T16 G1-21BV - T16 Gen 1 | 21BV | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| T16 G1-21BW - T16 Gen 1 | 21BW | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| T16 G2-21HH - T16 Gen 2 | 21HH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T16 G2-21HJ - T16 Gen 2 | 21HJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkBook 13x G2 IAP-21AT - ThinkBook 13x G2 IAP | 21AT | |
| ThinkBook Plus G3 IAP-21EL - ThinkBook Plus G3 IAP | 21EL | |
| ThinkBook Slim Series-ThinkBook 13s G4 IAP | 21AR | |
| ThinkPad L14-20U1 MT 2020 | 20U1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L14-20U2 MT 2020 | 20U2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L15-20U3 MT 2020 | 20U3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L15-20U4 MT 2020 | 20U4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad P16 Series-P16 G2 | 21FA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s G1 | 21BT | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21BU | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16s G2 | 21HK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16v G1 | 21FC | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FD | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad T14 Series-T14 G3 | 21AH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14s 2nd Generation | 20WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14s G3 | 21BR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S0 MT 2020 | 20S0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S1 MT 2020 | 20S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S2 MT 2020 HC | 20S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S3 MT 2020 HC | 20S3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14s-20T0 MT 2020 | 20T0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14s-20T1 MT 2020 | 20T1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T15-20S6 MT 2020 | 20S6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T15-20S7 MT 2020 | 20S7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T16 Series-T16 AMD G1 | 21CH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 Yoga G3 | 21AW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad Z16 Series-Z16 AMD G1 | 21D4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Carbon 8th Generation-20U9 MT 2020 | 20U9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 8th Generation-20UA MT 2020 | 20UA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XW - X1 Carbon Gen 9 | 20XW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XX - X1 Carbon Gen 9 | 20XX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G10-21CB - X1 Carbon Gen 10 | 21CB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G10-21CC - X1 Carbon Gen 10 | 21CC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G11-21HM - X1 Carbon Gen 11 | 21HM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G11-21HN - X1 Carbon Gen 11 | 21HN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano G2-21E8 - X1 Nano Gen 2 | 21E8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano G2-21E9 - X1 Nano Gen 2 | 21E9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano-20UN MT 2020 | 20UN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano-20UQ MT 2020 | 20UQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QA MT 2020 | 20QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QB MT 2020 | 20QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 5th Generation-20UB MT 2020 | 20UB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 5th Generation-20UC MT 2020 | 20UC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20XY - X1 Yoga Gen 6 | 20XY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20Y0 - X1 Yoga Gen 6 | 20Y0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G7-21CD - X1 Yoga Gen 7 | 21CD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G7-21CE - X1 Yoga Gen 7 | 21CE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G8-21HQ - X1 Yoga Gen 8 | 21HQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G8-21HR - X1 Yoga Gen 8 | 21HR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X12 Detachable 1st Generation-20UV MT 2020 | 20UV | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| X12 Detachable 1st Generation-20UW MT 2020 | 20UW | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| X13 G1-20T2 MT 2020 | 20T2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G1-20T3 MT 2020 | 20T3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G2-20WK - X13 Gen 2 | 20WK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G2-20WL - X13 Gen 2 | 20WL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G3-21BN - X13 Gen 3 | 21BN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G3-21BQ - X13 Gen 3 | 21BQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G4-21EX - X13 Gen 4 | 21EX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G4-21EY - X13 Gen 4 | 21EY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga 2nd Generation-20W8 MT 2021 | 20W8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga 2nd Generation-20W9 MT 2021 | 20W9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G3-21AX - X13 Yoga Gen 3 | 21AX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G4-21F2 - X13 Yoga Gen 4 | 21F2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G4-21F3 - X13 Yoga Gen 4 | 21F3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Z13 AMD G1-21D2 - Z13 Gen 1 | 21D2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Z13 AMD G1-21D3 - Z13 Gen 1 | 21D3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Z16 AMD G1-21D5 - Z16 Gen 1 | 21D5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |

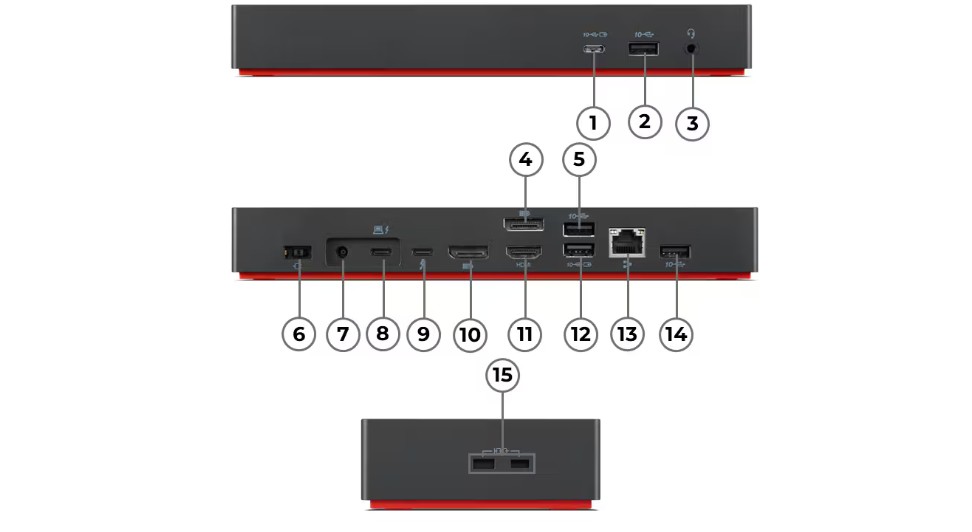

| Product Name | Lenovo Dock Universal Thunderbolt 4 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Lenovo ThinkPad Universal Thunderbolt 4 DockUniversal Thunderbolt™ 4-Andockstation auf Unternehmensniveau: Die ThinkPad Universal Thunderbolt 4 Dock bietet zuverlässige und konsistente, branchenweit führende Konnektivität für Video, Daten und Strom in einer Windows-basierten gemischten PC-Umgebung. ; Maximale Produktivität: Erweitern Sie Ihren Horizont mit vielseitiger Unterstützung für 8K-Displays oder mehrere 4K-Displays, geräuscharmen Firmwareaktualisierungen, VPro/AMT-Unterstützung und einer blitzschnellen 40 Gb/s-Datenübertragung. ; Die ThinkPad Universal Thunderbolt 4 ist zukunftssicher und bereit, Ihre Produktivität, Effizienz und Kreativität maximal zu steigern.
Top Features
What's in the Box
Technische Daten
Compatible Machines Stand 2023
|
