Erweitere dein Potenzial mit einer universalen Mini-Dock; Bei Lenovo ist man sich bewusst, dass moderne Unternehmen eine Vielzahl von PCs und Marken benötigen, um ihren geschäftlichen Anforderungen gerecht zu werden. Aus diesem Grund ist die Lenovo USB-C-Mini-Dock nicht nur mit Lenovo Notebooks kompatibel, sondern unterstützt auch Notebooks von HP und Dell. ** ** Haftungsausschluss: Lenovo USB-C- und Thunderbolt-Dockingstationen funktionieren mit Notebooks, deren Typ-C-Anschluss den branchenüblichen USB-C-Alt-Mode oder die Thunderbolt-Protokolle unterstützen. Die USB-C- und Thunderbolt-Dockingstationen von Lenovo unterstützen für die meisten Lenovo ThinkPad-Notebooks zusätzliche Funktionen, wie z. B. das Durchschleifen der MAC-Adresse, WOL und gespiegelte Netzschalter. Allerdings sind diese Funktionen für bestimmte Lenovo Notebooks oder Notebook-Systeme, die nicht von Lenovo stammen, möglicherweise nicht verfügbar.

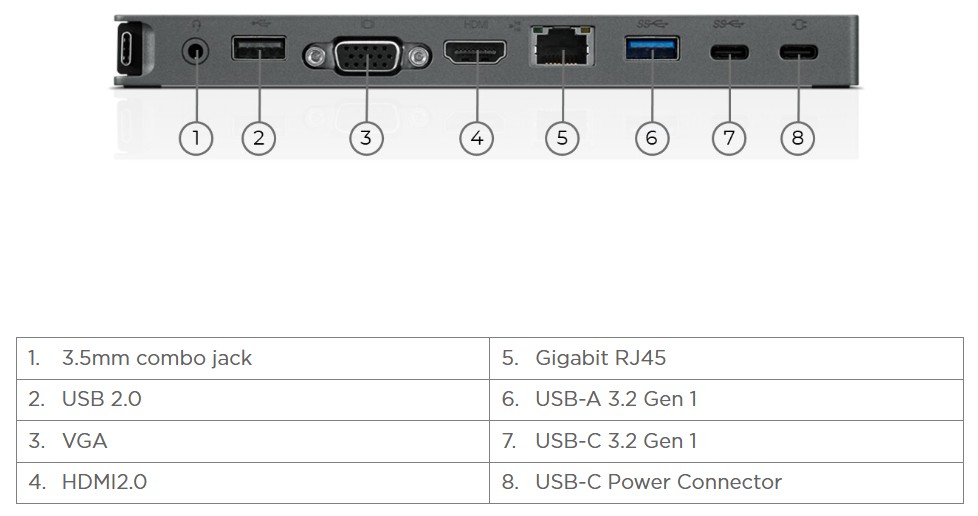

Konnektivität:
USB-C
Monitoranschlüsse:
1 x HDMI™ (Unterstützung bis zu 4K bei 60 Hz, HDR&HDCP2.2)
1 x VGA (Unterstützung bis zu 1080p bei 60 Hz)
An die Andockstation kann nur ein externer Display auf einmal angeschlossen werden.
Maximaler Videoausgang:
3840 x 2160 - 60 Hz
USB-Anschlüsse:
1 x USB-C 3.1 Gen 1
1 x USB-A 3.1 Gen 1
1 x USB 2.0
Ethernet:
1x Gigabit Ethernet Port (RJ45)
Audio:
1 x Kopfhörer/Mikrofon Kombi 3,5 mm
Netzstecker
USB-C
Eingangsleistung
65 W
Ausgangsleistung
45 W
Abmessungen und Gewicht:
Höhe 17 mm, Länge 180 mm, Tiefe 53 mm
Gewicht: 156 g
Supported OS:
Windows 10
Umgebung
Temperaturbereich: -5 °C - 40 °C
Garantiezeitraum
Ein Jahre Herstellergarantie
| Description | ID | Footnote |
| 100e AMD G3-82J7 - 100e Gen 3 | 82J7 | |
| 100e AMD G3-82J8 - 100e Gen 3 | 82J8 | |
| 100e G3-82UY - 100e Gen 3 | 82UY | |
| 100e G3-82V0 - 100e Gen 3 | 82V0 | |
| 100e G4-82W0 - 100e G4 | 82W0 | |
| 100e G4-82W1 - 100e G4 | 82W1 | |
| 100s Series-Lenovo 100e 2nd Gen | 82GJ | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| 100s Series-Lenovo 14w | 81MQ | P1W3M1. PXE boot supported. Wake On LAN from Sleep.MAC address pass through |
| 100s Series-Lenovo 300e 2nd Gen | 82GK | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| 100w G4-82VK – 100w Gen 4 | 82VK | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| 100w G4-82VL – 100w Gen 4 | 82VL | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| 10w-82ST - 10w | 82ST | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 10w-82SU - 10w | 82SU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 11e Yoga 6th Generation-20SE MT 2020 | 20SE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 11e Yoga 6th Generation-20SF MT 2020 | 20SF | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 13w Yoga G2-82YR - 13w Yoga Gen 2 | 82YR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 13w Yoga G2-82YS - 13w Yoga Gen 2 | 82YS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 13w Yoga-82S1 - 13w Yoga | 82S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 13w Yoga-82S2 - 13w Yoga | 82S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 14e Chrome G2-82M1 - 14e Chromebook Gen 2 | 82M1 | |
| 14e Chrome G2-82M2 - 14e Chromebook Gen 2 | 82M2 | |
| 14w G2-82N8 - 14w Gen 2 | 82N8 | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| 14w G2-82N9 - 14w Gen 2 | 82N9 | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| 300e G4-82W2 - 300e G4 | 82W2 | |
| 300e G4-82W3 - 300e G4 | 82W3 | |
| 500w G3-82J3 - 500w Gen 3 | 82J3 | P1W3. PXE boot supported. Wake On LAN from Sleep. |
| 500w G3-82J4 - 500w Gen 3 | 82J4 | P1W3. PXE boot supported. Wake On LAN from Sleep. |
| 500w G4-82VQ – 500w Gen 4 | 82VQ | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| 500w G4-82VR – 500w Gen 4 | 82VR | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| A285-20MW MT | 20MW | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| A285-20MX MT | 20MX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| A485-20MU MT | 20MU | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| A485-20MV MT | 20MV | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| C13 Yoga G1 Chromebook-20UX MT 2020 | 20UX | Dock Firmware updates on Windows-based host systems only. |
| C13 Yoga G1 Chromebook-20UY MT 2020 | 20UY | Dock Firmware updates on Windows-based host systems only. |
| E14 2nd Generation-20TA MT 2020 | 20TA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 2nd Generation-20TB MT 2020 | 20TB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 2nd Generation-ARE-20T6 MT 2020 | 20T6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| E14 2nd Generation-ARE-20T7 MT 2020 | 20T7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| E14 AMD 3rd Generation-20Y7 - E14 AMD Gen 3 | 20Y7 | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E14 AMD 3rd Generation-20YD - E14 AMD Gen 3 | 20YD | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E14 AMD 3rd Generation-20YE - E14 AMD Gen 3 | 20YE | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E14 AMD 3rd Generation-20YF - E14 AMD Gen 3 | 20YF | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E14 AMD G4-21EB - E14 AMD Gen 4 | 21EB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 AMD G4-21EC - E14 AMD Gen 4 | 21EC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 G4-21E3 - E14 Gen 4 | 21E3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14 G4-21E4 - E14 Gen 4 | 21E4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14-IML-20RA MT | 20RA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E14-IML-20RB MT | 20RB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 2nd Generation-ARE-20T8 MT 2020 | 20T8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 2nd Generation-ARE-20T9 MT 2020 | 20T9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YG - E15 AMD Gen 3 | 20YG | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YH - E15 AMD Gen 3 | 20YH | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YJ - E15 AMD Gen 3 | 20YJ | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E15 AMD 3rd Generation-20YK - E15 AMD Gen 3 | 20YK | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| E15 AMD G4-21ED - E15 AMD Gen 4 | 21ED | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 AMD G4-21EE - E15 AMD Gen 4 | 21EE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G2-20TD MT 2020 | 20TD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G2-20TE MT 2020 | 20TE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G4-21E6 - E15 Gen 4 | 21E6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15 G4-21E7 - E15 Gen 4 | 21E7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15-IML-20RD MT | 20RD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E15-IML-20RE MT | 20RE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| E490-20N8 MT | 20N8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| E490-20N9 MT | 20N9 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| E590-20NB MT | 20NB | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| E590-20NC MT | 20NC | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| EM-Chromebook(100s Chromebook)-Lenovo 100e Chromebook 2nd Gen | 81MA | |
| EM-Chromebook(100s Chromebook)-Lenovo 100e Chromebook 2nd Gen AST | 82CD | External displays is clone with dock. Dock Firmware updates on Windows-based host systems only. |
| EM-Chromebook(100s Chromebook)-Lenovo 100e Chromebook 2nd Gen AST_BRL | 82LS | External displays is clone with dock. Dock Firmware updates on Windows-based host systems only. |
| EM-Chromebook(100s Chromebook)-Lenovo 300e Chromebook 2nd Gen | 81MB | |
| EM-Chromebook(100s Chromebook)-Lenovo 300e Chromebook 2nd Gen AST | 82CE | External displays is clone with dock. Dock Firmware updates on Windows-based host systems only. |
| EM-Chromebook(100s Chromebook)-Lenovo 500e Chromebook 2nd Gen | 81MC | |
| IP Duet 3 Chromebook 11Q727-82T6 - IP Duet 3 Chromebook 11Q727 | 82T6 | |
| IP Duet 5 Chromebook 13Q7C6-82QS - IP Duet 5 Chromebook 13Q7C6 | 82QS | P1. PXE boot supported |
| IdeaPad 3 14ABA7-82RM - IdeaPad 3 14ABA7 | 82RM | |
| IdeaPad 3 14ABR8-82XL - IdeaPad 3 14ABR8 | 82XL | |
| IdeaPad 3 14IRU8-82X6 - IdeaPad 3 14IRU8 | 82X6 | |
| IdeaPad 3 15ABA7-82RN - IdeaPad 3 15ABA7 | 82RN | |
| IdeaPad 3 15ABR8-82XM - IdeaPad 3 15ABR8 | 82XM | |
| IdeaPad 3 15IRU8-82X7 - IdeaPad 3 15IRU8 | 82X7 | |
| IdeaPad 3 16ABR8-82XR - IdeaPad 3 16ABR8 | 82XR | |
| IdeaPad 3 16IRU8-82X8 - IdeaPad 3 16IRU8 | 82X8 | |
| IdeaPad 3 Chrome 14M836-82KN - IdeaPad 3 Chrome 14M836 | 82KN | |
| IdeaPad 3 Chrome 15IJL6-82N4 - IdeaPad 3 Chrome 15IJL6 | 82N4 | |
| IdeaPad 5 14ABA7-82SE - IdeaPad 5 14ABA7 | 82SE | |
| IdeaPad 5 14ABR8-82XE - IdeaPad 5 14ARP8 | 82XE | |
| IdeaPad 5 14IAL7-82SD - IdeaPad 5 14IAL7 | 82SD | |
| IdeaPad 5 14IRL8-82XD - IdeaPad 5 14IRL8 | 82XD | |
| IdeaPad 5 14ITL05-MT 82FE | 82FE | |
| IdeaPad 5 15ABA7-82SG - IdeaPad 5 15ABA7 | 82SG | |
| IdeaPad 5 15ALC05-82LN - IdeaPad 5 15ALC05 | 82LN | P1. PXE boot supported |
| IdeaPad 5 15IAL7-82SF - IdeaPad 5 15IAL7 | 82SF | |
| IdeaPad 5 16ABR8-82XG - IdeaPad 5 16ABR8 | 82XG | |
| IdeaPad 5 16IRL8-82XF - IdeaPad 5 16IRL8 | 82XF | |
| IdeaPad 5 Pro 14IAP7-82SH - IdeaPad 5 Pro 14IAP7 | 82SH | |
| IdeaPad 5 Pro 14ITL6-82L3 - IdeaPad 5 Pro 14ITL6 | 82L3 | |
| IdeaPad 5 Pro 16ACH6-82L5 - IdeaPad 5 Pro 16ACH6 | 82L5 | |
| IdeaPad 5 Pro 16IHU6-82L9 - IdeaPad 5 Pro 16IHU6 | 82L9 | |
| IdeaPad Creator 5 series-IdeaPad Creator 5 16ACH6 | 82L6 | |
| IdeaPad Duet 5 12IAU7-82TQ - IdeaPad Duet 5 12IAU7 | 82TQ | |
| IdeaPad Flex 3 Chrome 15IJL7-82T3 - IdeaPad Flex 3 Chrome 15IJL7 | 82T3 | |
| IdeaPad Flex 3 Chromebook series-IP Flex 3 Chrome 11IJL6 | 82N3 | |
| IdeaPad Flex 3 Chromebook series-IP Flex 3 Chrome 11M836 | 82KM | |
| IdeaPad Flex 5 14ABR8-82XX - IdeaPad Flex 5 14ABR8 | 82XX | |
| IdeaPad Flex 5 14ALC7-82R9 - IdeaPad Flex 5 14ALC7 | 82R9 | |
| IdeaPad Flex 5 14IAU7-82R7 - IdeaPad Flex 5 14IAU7 | 82R7 | |
| IdeaPad Flex 5 14IRU8-82Y0 - IdeaPad Flex 5 14IRU8 | 82Y0 | |
| IdeaPad Flex 5 14ITL05-82HS - IdeaPad Flex 5 14ITL05 | 82HS | |
| IdeaPad Flex 5 14ITL05-82LT - IdeaPad Flex 5 14ITL05 | 82LT | |
| IdeaPad Flex 5 16ABR8-82XY - IdeaPad Flex 5 16ABR8 | 82XY | |
| IdeaPad Flex 5 16IRU8-82Y1 - IdeaPad Flex 5 16IRU8 | 82Y1 | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 16ALC7 | 82RA | |
| IdeaPad Flex 5 series-IdeaPad Flex 5 16IAU7 | 82R8 | |
| IdeaPad Flex 7 14IAU7-82VC - IdeaPad Flex 7 14IAU7 | 82VC | |
| IdeaPad Gaming 3 15APH8-82XT - IdeaPad Gaming 3 15APH8 | 82XT | |
| IdeaPad Gaming 3 15IRH8-82XV - IdeaPad Gaming 3 15IRH8 | 82XV | |
| IdeaPad Gaming 3 16APH8-82XU - IdeaPad Gaming 3 16APH8 | 82XU | |
| IdeaPad Gaming 3 16IRH8-82XW - IdeaPad Gaming 3 16IRH8 | 82XW | |
| IdeaPad S300 Series-IdeaPad 3 17ABA7 | 82RQ | |
| IdeaPad S700 Series-IdeaPad Slim 7 14ARE05 | 82A5 | P1. PXE boot supported |
| IdeaPad S700 Series-IdeaPad Slim 7 Pro 16ACH6 | 82QR | |
| IdeaPad Slim 7 14ITL05-MT 82A6 | 82A6 | P1. PXE boot supported |
| IdeaPad Slim 7 15ITL05-MT 82AF | 82AF | P1. PXE boot supported |
| IdeaPad Slim 9 14ITL5-MT 82D2 | 82D2 | |
| K14 AMD G1-21CU - K14 Gen 1 | 21CU | P1. PXE boot supported |
| K14 AMD G1-21CV - K14 Gen 1 | 21CV | P1. PXE boot supported |
| K14 G1-21CS - K14 Gen 1 | 21CS | P1. PXE boot supported |
| K14 G1-21CT - K14 Gen 1 | 21CT | P1. PXE boot supported |
| L13 Clam 2nd Generation-20VH MT 2020 | 20VH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam 2nd Generation-20VJ MT 2020 | 20VJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G2-21AB - L13 Clam Gen 2 | 21AB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G2-21AC - L13 Clam Gen 2 | 21AC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G3-21B9 - L13 Clam Gen 3 | 21B9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G3-21BA - L13 Clam Gen 3 | 21BA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam AMD G4-21FN - L13 Clam AMD Gen 4 | 21FN | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L13 Clam AMD G4-21FQ - L13 Clam AMD Gen 4 | 21FQ | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L13 Clam G3-21B3 - L13 Clam Gen 3 | 21B3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G3-21B4 - L13 Clam Gen 3 | 21B4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Clam G4-21FG - L13 Clam Gen 4 | 21FG | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L13 Clam G4-21FH - L13 Clam Gen 4 | 21FH | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L13 Clam-20R3 MT | 20R3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Clam-20R4 MT | 20R4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L13 Yoga 2nd Generation-20VK MT 2020 | 20VK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga 2nd Generation-20VL MT 2020 | 20VL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G2-21AD - L13 Yoga Gen 2 | 21AD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G2-21AE - L13 Yoga Gen 2 | 21AE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G3-21BB - L13 Yoga Gen 3 | 21BB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G3-21BC - L13 Yoga Gen 3 | 21BC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga AMD G4-21FR - L13 Yoga AMD Gen 4 | 21FR | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L13 Yoga AMD G4-21FS - L13 Yoga AMD Gen 4 | 21FS | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L13 Yoga G3-21B5 - L13 Yoga Gen 3 | 21B5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G3-21B6 - L13 Yoga Gen 3 | 21B6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L13 Yoga G4-21FJ - L13 Yoga Gen 4 | 21FJ | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L13 Yoga G4-21FK - L13 Yoga Gen 4 | 21FK | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L14 AMD G1-20U5 MT 2020 | 20U5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G1-20U6 MT 2020 | 20U6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L14 AMD G2-20X5 - L14 Gen 2 | 20X5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G2-20X6 - L14 Gen 2 | 20X6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G3-21C5 - L14 Gen 3 | 21C5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G3-21C6 - L14 Gen 3 | 21C6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 AMD G4-21H5 - L14 Gen 4 | 21H5 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L14 AMD G4-21H6 - L14 Gen 4 | 21H6 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L14 G2-20X1 - L14 Gen 2 | 20X1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G2-20X2 - L14 Gen 2 | 20X2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G3-21C1 - L14 Gen 3 | 21C1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G3-21C2 - L14 Gen 3 | 21C2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L14 G4-21H1 - L14 Gen 4 | 21H1 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L14 G4-21H2 - L14 Gen 4 | 21H2 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L15 AMD G1-20U7 MT 2020 | 20U7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L15 AMD G1-20U8 MT 2020 | 20U8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L15 AMD G2-20X7 - L15 Gen 2 | 20X7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G2-20X8 - L15 Gen 2 | 20X8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G3-21C7 - L15 Gen 3 | 21C7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G3-21C8 - L15 Gen 3 | 21C8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 AMD G4-21H7 - L15 Gen 4 | 21H7 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L15 AMD G4-21H8 - L15 Gen 4 | 21H8 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L15 G2-20X3 - L15 Gen 2 | 20X3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G2-20X4 - L15 Gen 2 | 20X4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G3-21C3 - L15 Gen 3 | 21C3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G3-21C4 - L15 Gen 3 | 21C4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| L15 G4-21H3 - L15 Gen 4 | 21H3 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L15 G4-21H4 - L15 Gen 4 | 21H4 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| L380-20M5 MT | 20M5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L380-20M6 MT | 20M6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L380-20M7 MT | 20M7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L380-20M8 MT | 20M8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L390-20NR MT | 20NR | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L390-20NS MT | 20NS | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L390-20NT MT | 20NT | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L390-20NU MT | 20NU | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L480-20LS MT | 20LS | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L480-20LT MT | 20LT | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L490-20Q5 MT | 20Q5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L490-20Q6 MT | 20Q6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L580-20LW MT | 20LW | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L580-20LX MT | 20LX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L590-20Q7 MT | 20Q7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| L590-20Q8 MT | 20Q8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Lenovo IdeaPad S540-13ARE-MT 82DL | 82DL | P1. PXE boot supported |
| Lenovo IdeaPad S540-13IML-MT 81XA | 81XA | 359.Not support MAC address pass through/PXE Boot/Wake on LAN |
| Lenovo IdeaPad S540-13ITL-MT 82H1 | 82H1 | P1. PXE boot supported |
| Lenovo S700 Series-Lenovo Slim 7 14ARH7 | 82UV | |
| Lenovo S700 Series-Lenovo Slim 7 16ARH7 | 82UX | |
| Lenovo S700 Series-Lenovo Slim 7 16IAH7 | 82VB | |
| Lenovo S700 Series-Lenovo Slim 7 Carbon 13IAP7 | 82V4 | |
| Lenovo S700 Series-Lenovo Slim 7 ProX 14ARH7 | 82V2 | |
| Lenovo S700 Series-Lenovo Slim 7 ProX 14IAH7 | 82V1 | |
| Lenovo Slim 7 14IAP7-82SX - Lenovo Slim 7 14IAP7 | 82SX | |
| Lenovo Slim 9 14IAP7-82T1 - Lenovo Slim 9 14IAP7 | 82T1 | |
| Lenovo Tablet 10-20L3 MT | 20L3 | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| Lenovo Tablet 10-20L4 MT | 20L4 | P1W345:PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode |
| Lenovo ThinkBook 14-IIL-MT 20SL | 20SL | P1. PXE boot supported |
| Lenovo V15 G3 ABA-82TV - Lenovo V15 G3 ABA | 82TV | |
| P1 2nd Generation-20QT MT | 20QT | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 2nd Generation-20QU MT | 20QU | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 G4-20Y3 - P1 Gen 4 | 20Y3 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 G5-21DC - P1 Gen 5 | 21DC | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 G5-21DD - P1 Gen 5 | 21DD | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P1 G6-21FV - P1 Gen 6 | 21FV | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P1 G6-21FW - P1 Gen 6 | 21FW | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P14s 2nd Generation-20VX MT 2021 | 20VX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s 2nd Generation-20VY MT 2021 | 20VY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y1 - P14s AMD Gen 1 | 20Y1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y2 - P14s AMD Gen 1 | 20Y2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G2-21A0 - P14s AMD Gen 2 | 21A0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G2-21A1 - P14s AMD Gen 2 | 21A1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G3-21AK MT 2022 | 21AK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G3-21AL MT 2022 | 21AL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s G4-21HF - P14s Gen 4 | 21HF | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P14s G4-21HG - P14s Gen 4 | 21HG | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P15 G2-20YR - P15 Gen 2 | 20YR | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P15s 1st Generation-20T4 MT 2020 | 20T4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 1st Generation-20T5 MT 2020 | 20T5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 2nd Generation-20W6 - P15s Gen 2 | 20W6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15s 2nd Generation-20W7 - P15s Gen 2 | 20W7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P15v AMD G3-21EM - P15v AMD Gen 3 | 21EM | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P15v AMD G3-21EN - P15v AMD Gen 3 | 21EN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P15v G2-21A9 - P15v Gen 2 | 21A9 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P15v G2-21AA - P15v Gen 2 | 21AA | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P15v G3-21D8 - P15v Gen 3 | 21D8 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P15v G3-21D9 - P15v Gen 3 | 21D9 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P16 G1-21D6 - P16 Gen 1 | 21D6 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P16s AMD G1-21CK - P16s AMD Gen 1 | 21CK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P16s AMD G1-21CL - P16s AMD Gen 1 | 21CL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P16v AMD G1-21FE - P16v AMD Gen 1 | 21FE | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P16v AMD G1-21FF - P16v AMD Gen 1 | 21FF | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| P43s-20RH MT | 20RH | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P43s-20RJ MT | 20RJ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P53-20QN MT | 20QN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P53-20QQ MT | 20QQ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| P53s-20N7 MT | 20N7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| P73-20QR MT | 20QR | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| T14 2nd Generation-20W0 MT 2021 | 20W0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W1 MT 2021 | 20W1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W2 MT 2021 HC | 20W2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 2nd Generation-20W3 MT 2021 HC | 20W3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G1-20UD MT 2020 | 20UD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G1-20UE MT 2020 | 20UE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G2-20XK - T14 AMD Gen 2 | 20XK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G2-20XL - T14 AMD Gen 2 | 20XL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G3-21CF - T14 AMD Gen 3 | 21CF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 AMD G3-21CG - T14 AMD Gen 3 | 21CG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G3-21AJ - T14 Gen 3 | 21AJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14 G4-21HD - T14 Gen 4 | 21HD | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| T14 G4-21HE - T14 Gen 4 | 21HE | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| T14s 2nd Generation-20WM - T14s Gen 2 | 20WM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G1-20UH MT 2020 | 20UH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G1-20UJ MT 2020 | 20UJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G2-20XF - T14s AMD Gen 2 | 20XF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G2-20XG - T14s AMD Gen 2 | 20XG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G3-21CQ - T14s AMD Gen 3 | 21CQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s AMD G3-21CR - T14s AMD Gen 3 | 21CR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G3-21BS - T14s Gen 3 | 21BS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T14s G4-21F6 - T14s Gen 4 | 21F6 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| T14s G4-21F7 - T14s Gen 4 | 21F7 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| T15 2nd Generation-20W4 - T15 Gen 2 | 20W4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15 2nd Generation-20W5 - T15 Gen 2 | 20W5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T15p G3-21DA - T15p Gen 3 | 21DA | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| T15p G3-21DB - T15p Gen 3 | 21DB | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| T16 AMD G1-21CJ - T16 AMD Gen 1 | 21CJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| T16 G1-21BV - T16 Gen 1 | 21BV | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| T16 G1-21BW - T16 Gen 1 | 21BW | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| T16 G2-21HH - T16 Gen 2 | 21HH | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| T16 G2-21HJ - T16 Gen 2 | 21HJ | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| T480-WINDU-2.0 20L5 MT | 20L5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T480-WINDU-2.0 20L6 MT | 20L6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T480s-KOLAR-1.0 20L7 MT | 20L7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T480s-KOLAR-1.0 20L8 MT | 20L8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490-20N2 MT | 20N2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490-20N3 MT | 20N3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490-20Q9 MT | 20Q9 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490-20QH MT | 20QH | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490-20RX MT | 20RX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490-20RY MT | 20RY | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490s-20NX MT | 20NX | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T490s-20NY MT | 20NY | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T495-20NJ MT | 20NJ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T495-20NK MT | 20NK | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T590-20N4 MT | 20N4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| T590-20N5 MT | 20N5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkBook 13s G4 ARB-21AS - ThinkBook 13s G4 ARB | 21AS | P1. PXE boot supported |
| ThinkBook 13x G2 IAP-21AT - ThinkBook 13x G2 IAP | 21AT | P1. PXE boot supported |
| ThinkBook 14 G4 IAP-21DH - ThinkBook 14 G4 IAP | 21DH | P1. PXE boot supported |
| ThinkBook 14s 2nd Generation-ITL-MT 20VA | 20VA | P1. PXE boot supported |
| ThinkBook 15 2nd Generation-ARE-MT 20VG | 20VG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkBook 15 3rd Generation - ACL-MT 21A4 ThinkBook 15 G3 ACL | 21A4 | |
| ThinkBook 15 G4 ABA-21DL - ThinkBook 15 G4 ABA | 21DL | P1. PXE boot supported |
| ThinkBook 15p G2 ITH-21B1 - ThinkBook 15p G2 ITH | 21B1 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook 16 G4+ IAP-21CY - ThinkBook 16 G4+ IAP | 21CY | |
| ThinkBook 16p G2 ACH-20YM - ThinkBook 16p G2 ACH | 20YM | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Plus G3 IAP-21EL - ThinkBook Plus G3 IAP | 21EL | |
| ThinkBook Plus Series-ThinkBook 13x ITG | 20WJ | |
| ThinkBook Plus Series-ThinkBook Plus G2 ITG | 20WH | P1. PXE boot supported |
| ThinkBook Series (Perfomance)-ThinkBook 14p G2 ACH | 20YN | P1. PXE boot supported |
| ThinkBook Series (Perfomance)-ThinkBook 16p NX ARH | 21EV | |
| ThinkBook Slim Series-ThinkBook 13s 2nd Generation-ITL | 20V9 | P1. PXE boot supported |
| ThinkBook Slim Series-ThinkBook 13s G2 ARE | 20WC | P1. PXE boot supported |
| ThinkBook Slim Series-ThinkBook 13s G3 ACN | 20YA | |
| ThinkBook Slim Series-ThinkBook 13s G4 IAP | 21AR | |
| ThinkBook Yoga Series-Lenovo ThinkBook 14s Yoga ITL | 20WE | P1. PXE boot supported |
| ThinkPad 11e 5th Generation-20LM MT | 20LM | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad 11e 5th Generation-20LN MT | 20LN | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad 11e 5th Generation-20LQ MT | 20LQ | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad 11e 5th Generation-20LR MT | 20LR | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L14-20U1 MT 2020 | 20U1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L14-20U2 MT 2020 | 20U2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L15-20U3 MT 2020 | 20U3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad L15-20U4 MT 2020 | 20U4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad P Series-P53s | 20N6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| ThinkPad P Series-P73 | 20QS | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P1 3rd Generation-20TJ MT 2020 | 20TJ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P1 Series-P1 G4 | 20Y4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P1 Series-ThinkPad P1 3rd Generation | 20TH | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P14s-20S4 MT 2020 | 20S4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P14s-20S5 MT 2020 | 20S5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P15 Series-P15 G2 | 20YQ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P15-20ST MT 2020 | 20ST | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P15-20SU MT 2020 | 20SU | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P15g-20UR MT 2020 | 20UR | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P15g-20US MT 2020 | 20US | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P15v-20TQ MT 2020 | 20TQ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P15v-20TR MT 2020 | 20TR | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P16 Series-P16 G1 | 21D7 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P16 Series-P16 G2 | 21FA | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| 21FB | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through | |
| ThinkPad P16 Series-P16s G1 | 21BT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s G2 | 21HK | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| 21HL | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through | |
| ThinkPad P16 Series-P16v G1 | 21FC | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| 21FD | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through | |
| ThinkPad P17 Series-P17 G2 | 20YU | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 20YV | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P17 Series-ThinkPad P17 | 20SN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad P17-20SQ MT 2020 | 20SQ | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkPad T14 Series-T14 G3 | 21AH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14s 2nd Generation | 20WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14s G3 | 21BR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S0 MT 2020 | 20S0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S1 MT 2020 | 20S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S2 MT 2020 HC | 20S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14-20S3 MT 2020 HC | 20S3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14s-20T0 MT 2020 | 20T0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14s-20T1 MT 2020 | 20T1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T15-20S6 MT 2020 | 20S6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T15-20S7 MT 2020 | 20S7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T16 Series-T16 AMD G1 | 21CH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X1 Tablet Gen 3-20KJ MT | 20KJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X1 Tablet Gen 3-20KK MT | 20KK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 AMD G3 | 21CN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 Yoga G3 | 21AW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad Z16 Series-Z16 AMD G1 | 21D4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| Thinkbook Series-Lenovo ThinkBook 13s-IML | 20RR | 359.Not support MAC address pass through/PXE Boot/Wake on LAN |
| Thinkbook Series-Lenovo ThinkBook 14-IML | 20RV | P1. PXE boot supported |
| Thinkbook Series-Lenovo ThinkBook 14s-IML | 20RS | 359.Not support MAC address pass through/PXE Boot/Wake on LAN |
| Thinkbook Series-Lenovo ThinkBook 15-IIL | 20SM | P1. PXE boot supported |
| Thinkbook Series-Lenovo ThinkBook 15-IML | 20RW | P1. PXE boot supported |
| Thinkbook Series-Lenovo ThinkBook Plus | 20TG | P1. PXE boot supported |
| Thinkbook Series-ThinkBook 14 2nd Generation-ARE | 20VF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 3rd Generation - ACL | 21A2 | |
| Thinkbook Series-ThinkBook 14 G3 ITL | 21A3 | |
| Thinkbook Series-ThinkBook 14 G4 ABA | 21DK | P1. PXE boot supported |
| Thinkbook Series-ThinkBook 14 G4+ ARA | 21D0 | P1. PXE boot supported |
| Thinkbook Series-ThinkBook 14 G4+ IAP | 21CX | |
| Thinkbook Series-ThinkBook 15 G3 ITL | 21A5 | |
| Thinkbook Series-ThinkBook 15 G4 IAP | 21DJ | P1. PXE boot supported |
| Thinkbook Series-ThinkBook 16 G4+ ARA | 21D1 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| X1 Carbon 6th Generation-20KG MT | 20KG | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X1 Carbon 6th Generation-20KH MT | 20KH | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X1 Carbon 7th Generation-20QD MT | 20QD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 7th Generation-20QE MT | 20QE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 7th Generation-20R1 MT | 20R1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 7th Generation-20R2 MT | 20R2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 8th Generation-20U9 MT 2020 | 20U9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 8th Generation-20UA MT 2020 | 20UA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XW - X1 Carbon Gen 9 | 20XW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon 9th Generation-20XX - X1 Carbon Gen 9 | 20XX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G10-21CB - X1 Carbon Gen 10 | 21CB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G10-21CC - X1 Carbon Gen 10 | 21CC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G11-21HM - X1 Carbon Gen 11 | 21HM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Carbon G11-21HN - X1 Carbon Gen 11 | 21HN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme 1st Generation-20MF MT | 20MF | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Extreme 1st Generation-20MG MT | 20MG | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Extreme 2nd Generation-20QV MT | 20QV | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Extreme 2nd Generation-20QW MT | 20QW | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Extreme 3rd Generation-20TK MT 2020 | 20TK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme 3rd Generation-20TL MT 2020 | 20TL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Extreme G4-20Y5 - X1 Extreme Gen 4 | 20Y5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Extreme G4-20Y6 - X1 Extreme Gen 4 | 20Y6 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Extreme G5-21DE - X1 Extreme Gen 5 | 21DE | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Extreme G5-21DF - X1 Extreme Gen 5 | 21DF | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| X1 Fold 16 G1-21ES - X1 Fold 16 Gen 1 | 21ES | PXE boot supported.MAC address pass through supported |
| X1 Fold 16 G1-21ET - X1 Fold 16 Gen 1 | 21ET | PXE boot supported.MAC address pass through supported |
| X1 Fold-20RK MT 2020 | 20RK | P1. PXE boot supported |
| X1 Fold-20RL MT 2020 | 20RL | P1. PXE boot supported |
| X1 Nano G2-21E8 - X1 Nano Gen 2 | 21E8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano G2-21E9 - X1 Nano Gen 2 | 21E9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano-20UN MT 2020 | 20UN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Nano-20UQ MT 2020 | 20UQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QA MT 2020 | 20QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Titanium G1-20QB MT 2020 | 20QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 3rd Generation-RAVEN-3.0 20LD MT | 20LD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 3rd Generation-RAVEN-3.0 20LE MT | 20LE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 3rd Generation-RAVEN-3.0 20LF MT | 20LF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 3rd Generation-RAVEN-3.0 20LG MT | 20LG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20QF MT | 20QF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20QG MT | 20QG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20SA MT | 20SA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 4th Generation-20SB MT | 20SB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 5th Generation-20UB MT 2020 | 20UB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 5th Generation-20UC MT 2020 | 20UC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20XY - X1 Yoga Gen 6 | 20XY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga 6th Generation-20Y0 - X1 Yoga Gen 6 | 20Y0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G7-21CD - X1 Yoga Gen 7 | 21CD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G7-21CE - X1 Yoga Gen 7 | 21CE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G8-21HQ - X1 Yoga Gen 8 | 21HQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X1 Yoga G8-21HR - X1 Yoga Gen 8 | 21HR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X12 Detachable 1st Generation-20UV MT 2020 | 20UV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X12 Detachable 1st Generation-20UW MT 2020 | 20UW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G1-20UF MT 2020 | 20UF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G1-20UG MT 2020 | 20UG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G2-20XH - X13 AMD Gen 2 | 20XH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G2-20XJ - X13 AMD Gen 2 | 20XJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 AMD G3-21CM - X13 AMD Gen 3 | 21CM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G1-20T2 MT 2020 | 20T2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G1-20T3 MT 2020 | 20T3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G2-20WK - X13 Gen 2 | 20WK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G2-20WL - X13 Gen 2 | 20WL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G3-21BN - X13 Gen 3 | 21BN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G3-21BQ - X13 Gen 3 | 21BQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 G4-21EX - X13 Gen 4 | 21EX | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| X13 G4-21EY - X13 Gen 4 | 21EY | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| X13 Yoga 2nd Generation-20W8 MT 2021 | 20W8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga 2nd Generation-20W9 MT 2021 | 20W9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G3-21AX - X13 Yoga Gen 3 | 21AX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga G4-21F2 - X13 Yoga Gen 4 | 21F2 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| X13 Yoga G4-21F3 - X13 Yoga Gen 4 | 21F3 | 322.With AC power adapter connected: PXE boot supported. Wake On LAN from Hibernation, or Power-Off mode. MAC address pass through Without AC power adapter connected: PXE boot supported. MAC address pass through |
| X13 Yoga-20SX MT 2020 | 20SX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X13 Yoga-20SY MT 2020 | 20SY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| X280-20KE MT | 20KE | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X280-20KF MT | 20KF | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X390-20Q0 MT | 20Q0 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X390-20Q1 MT | 20Q1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X390-20SC MT | 20SC | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X390-20SD MT | 20SD | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X395-20NL MT | 20NL | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| X395-20NM MT | 20NM | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Yoga C700 Series-Yoga 7 14ACN6 | 82N7 | |
| Yoga C700 Series-Yoga 7 14ITL5 | 82BH | P1. PXE boot supported |
| 82LW | P1. PXE boot supported | |
| Yoga C700 Series-Yoga 7 15ITL5 | 82BJ | P1. PXE boot supported |
| Yoga C900 Series-Lenovo Yoga C940-15IRH | 81TE | W345M1: Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through |
| Yoga C900 Series-Yoga 9 14IAP7 | 82LU | |
| Yoga C900 Series-Yoga 9 14ITL5 | 82BG | P1. PXE boot supported |
| Yoga D700 series-Yoga Duet 7 13IML05 | 82AS | |
| Yoga D700 series-Yoga Duet 7 13ITL6 | 82MA | P1. PXE boot supported |
| Yoga D700 series-Yoga Duet 7 13ITL6-LTE | 82Q7 | |
| Yoga Duet IML 2020-MT 82E9 | 82E9 | |
| Yoga S600 Series-Yoga Slim 6 14IAP8 | 82WU | |
| Yoga S600 Series-Yoga Slim 6 14IRP8 | 82WV | |
| Yoga S700 Series-Lenovo Yoga S740-14IIL | 81RM | 359.Not support MAC address pass through/PXE Boot/Wake on LAN |
| 81RS | 359.Not support MAC address pass through/PXE Boot/Wake on LAN | |
| Yoga S700 Series-Lenovo Yoga S740-15IRH | 81NX | 359.Not support MAC address pass through/PXE Boot/Wake on LAN |
| Yoga S700 Series-Yoga Slim 7 13ACN5 | 82CY | P1. PXE boot supported |
| Yoga S700 Series-Yoga Slim 7 13ITL5 | 82CU | P1. PXE boot supported |
| Yoga S700 Series-Yoga Slim 7 14ITL05 | 82A3 | P1. PXE boot supported |
| Yoga S700 Series-Yoga Slim 7 15ITL05 | 82AC | P1. PXE boot supported |
| Yoga S700 Series-Yoga Slim 7 Carbon 13IAP7 | 82U9 | |
| Yoga S700 Series-Yoga Slim 7 Carbon 13ITL5 | 82EV | |
| Yoga S700 Series-Yoga Slim 7 Pro 14ACH5 | 82MS | |
| Yoga S700 Series-Yoga Slim 7 Pro 14ACH5 O | 82N5 | |
| Yoga S700 Series-Yoga Slim 7 Pro 14ARH5 | 82LA | P1. PXE boot supported |
| Yoga S700 Series-Yoga Slim 7 Pro 14ARH7 | 82UU | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IAH7 | 82UT | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IAP7 | 82SV | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IHU5 | 82NC | P1. PXE boot supported |
| Yoga S700 Series-Yoga Slim 7 Pro 14IHU5 O | 82NH | |
| Yoga S700 Series-Yoga Slim 7 Pro 14IRH8 | 82Y7 | |
| Yoga S700 Series-Yoga Slim 7 Pro 14ITL5 | 82FX | |
| Yoga S700 Series-Yoga Slim 7 Pro 16ACH6 | 82QQ | |
| Yoga S700 Series-Yoga Slim 7 Pro 16ARH7 | 82UW | |
| Yoga S700 Series-Yoga Slim 7 Pro 16IAH7 | 82VA | |
| Yoga S700 Series-Yoga Slim 7 ProX 14ARH7 | 82TL | |
| Yoga S700 Series-Yoga Slim 7 ProX 14IAH7 | 82TK | |
| Yoga S900 Series-Yoga Slim 9 14IAP7 | 82T0 | |
| Yoga S900 Series-Yoga Slim 9 14ITL5 | 82D1 | |
| Yoga Slim 7 14ARE05-MT 82A2 | 82A2 | P1. PXE boot supported |
| Z13 AMD G1-21D2 - Z13 Gen 1 | 21D2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Z13 AMD G1-21D3 - Z13 Gen 1 | 21D3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Z16 AMD G1-21D5 - Z16 Gen 1 | 21D5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| Product Name | Lenovo Dock USB-C Mini-Dock 40AU0065EU | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Lenovo USB-C Mini-Dock (EU)Erweitere dein Potenzial mit einer universalen Mini-Dock; Bei Lenovo ist man sich bewusst, dass moderne Unternehmen eine Vielzahl von PCs und Marken benötigen, um ihren geschäftlichen Anforderungen gerecht zu werden. Aus diesem Grund ist die Lenovo USB-C-Mini-Dock nicht nur mit Lenovo Notebooks kompatibel, sondern unterstützt auch Notebooks von HP und Dell. ** ** Haftungsausschluss: Lenovo USB-C- und Thunderbolt-Dockingstationen funktionieren mit Notebooks, deren Typ-C-Anschluss den branchenüblichen USB-C-Alt-Mode oder die Thunderbolt-Protokolle unterstützen. Die USB-C- und Thunderbolt-Dockingstationen von Lenovo unterstützen für die meisten Lenovo ThinkPad-Notebooks zusätzliche Funktionen, wie z. B. das Durchschleifen der MAC-Adresse, WOL und gespiegelte Netzschalter. Allerdings sind diese Funktionen für bestimmte Lenovo Notebooks oder Notebook-Systeme, die nicht von Lenovo stammen, möglicherweise nicht verfügbar.
Technische Daten
Konnektivität:
Compatible Machines Stand 2023
|
