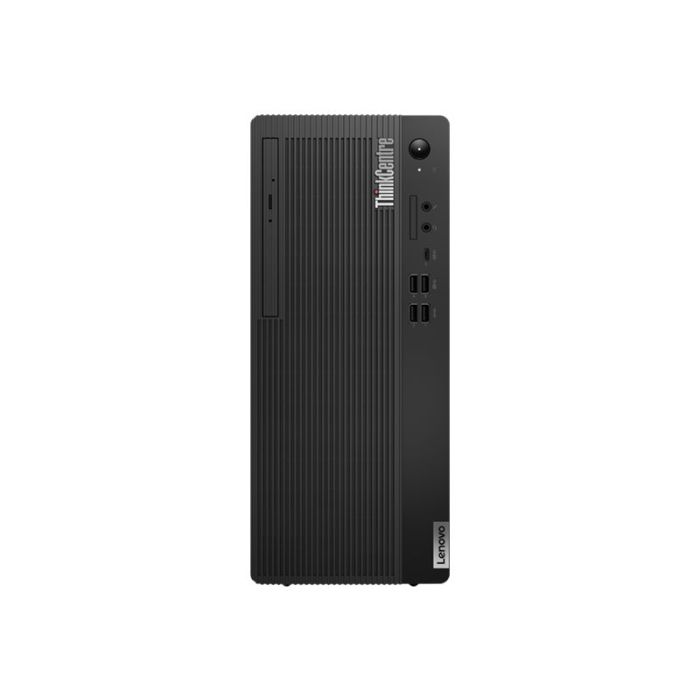

Lenovo ThinkCentre M70t Gen 6 Tower (13,6L)
Intel Core U5 225 (10C, bis 4.9GHz, 20MB)
16 GB DDR5-5600
512GB SSD M.2
Intel Graphics
Lenovo USB Traditional Keyboard + USB Calliope Mouse
Windows 11 Pro
3 Jahre Hersteller Vor-Ort Service inkl. 1. Jahr Premier Support
Tower-PC als Speerspitze der Business Performance
Ein KI-PC-Tower mit professioneller Zuverlässigkeit, der reibungslose Leistung bietet und hohe Produktivität fördert.
- - Leistung, Sicherheit und Verwaltbarkeit auf Unternehmensniveau mit Intel vPro®
- - Branchenführende optionale Grafikprozessoren (GPUs) und starke KI-Leistung für anspruchsvolle Workloads
- - Vielseitiger und anpassungsfähiger Tower mit mehreren Anschlüssen und erweiterbaren Speicheroptionen.
Technische Daten
AI-PC
| PERFORMANCE |
| Processor |
Intel® Core Ultra 5 225, 10C (6P + 4E) / 10T, Max Turbo up to 4.9GHz, 20MB
|
| AI PC Category |
|
| NPU |
Integrated Intel® AI Boost, up to 13 TOPS
|
| Graphics |
Integrated Intel® Graphics
|
| Chipset |
Intel® Q870 Chipset
|
| Memory |
1x 16GB UDIMM DDR5-5600
|
| Memory Slots |
Four DDR5 UDIMM slots, dual-channel capable
|
| Max Memory
|
Up to 128GB DDR5
|
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
|
| Max Storage Support
|
Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
|
| Card Reader |
None
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC623-CG codec
|
| Speakers |
2Wx1
|
| Power Supply |
260W 90%
|
| DESIGN |
| Keyboard |
USB Traditional Keyboard, Black, German
|
| Mouse |
USB Calliope Mouse, Black
|
| Optional Bay |
2nd M.2 Bracket
|
| Expansion Slots |
- One PCIe® 4.0 x16, full-height, length ≤ 209mm, height ≤ 117.5mm
- Two PCIe® 3.0 x1, full-height, length ≤ 185mm, height ≤ 100mm
- Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color |
Black
|
| Stand |
No stand
|
| Dust Filter |
None
|
| Pen |
Pen Not Supported
|
| Form Factor |
Tower (13.6L)
|
| Dimensions (WxDxH)
|
145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)
|
| Weight
|
5.7 kg (12.6 lbs, maximum configuration)
|
| CONNECTIVITY |
| WLAN + Bluetooth |
None
|
| WWAN |
Non-WWAN
|
| Ethernet |
Integrated 100/1000M
|
| Front Ports |
- 1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
|
| Optional Front Ports (configured) |
-
|
| Rear Ports
|
- 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x HDMI® 2.1 TMDS
- 2x DisplayPort™ 1.4a (HBR2, DSC)
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) |
None
|
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
|
| Fingerprint Reader |
No fingerprint reader
|
| Physical Locks |
- Kensington® Security Slot™, 3 x 7 mm
- Padlock Loop
|
| Smart Cable Clip |
None
|
| Chassis E-Lock |
None
|
| Chassis Intrusion Switch |
Chassis Intrusion Switch
|
| MANAGEABILITY |
| System Management
|
Non-vPro®
|
| SERVICE |
| Base Warranty |
1-year, Onsite
|
| Included Upgrade |
1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN)
|
| CERTIFICATIONS |
| Green Certifications |
- ENERGY STAR® 9.0
- TCO Certified 10.0
- ErP Lot 3
- GREENGUARD®
- RoHS compliant
|
| Other Certifications |
-
|
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
|
| SOFTWARE |
| Operating System |
Windows® 11 Pro, German
|
| Bundled Software |
None
|
| ACCESSORIES |
| Bundled Accessories |
None
|
| |
| Recommended Services |
| Better |
3Y Premier Support upgrade from 1Y Premier Support (5WS1B61713)
|
| Good |
2Y Premier Support upgrade from 1Y Premier Support (5WS1B61705)
|
|
