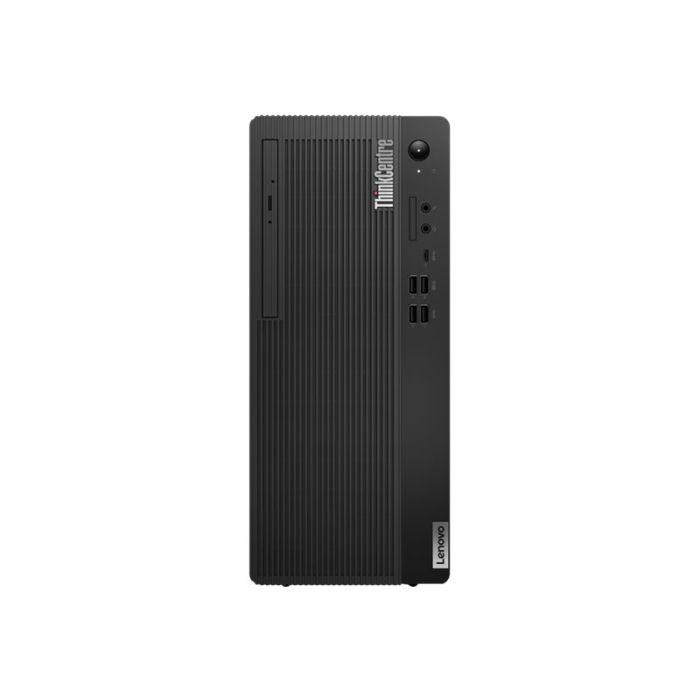

LENOVO ThinkCentre M75t G5 R5 16GB 512

Brand

Lenovo

Art.-Nr.

29600

EAN/UPC-Code: 0198154750985
Hersteller Art. Nr.: 12X90005GE

zzgl. MwSt., und Versand

Datenblatt

Spezifikationen ThinkCentre M75t G5

AMD Ryzen 5 8500G (6C, bis 5,0GHz), 16GB DDR5-5200, 512GB SSD M.2, AMD Radeon 740M Graphics, G-LAN, AMD Wi-Fi 6E RZ616, 802.11ax 2x2 + BT5.3, 2x DP, 1x HDMI, 8x USB-A, 1x USB-C, HD Audio, inkl. USB Tastatur/Maus. TPM 2.0, Windows 11 Pro. 5,9 kg. Tower (13,6L). 3 Jahre VOS mit 1.J. Premier Support. 12X90005GE. EAN:0198154750985

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

LENOVO ThinkCentre M75t Gen 5 Tower (13,6L)

AMD Ryzen 5 8500G (6C, bis 5.00 GHz, 16MB L3 Cache)
16 GB DDR5-5200 MHz
512 GB SSD M.2
AMD Radeon 740M Graphics
AMD Wi-Fi® 6E RZ616, 802.11ax 2x2 + BT5.3
Lenovo USB Traditional Keyboard + USB Calliope Mouse
Windows 11 Pro
3 Jahre Vor-Ort Service inkl. 1. Jahr Premier Support

Technische Daten

PERFORMANCE
Processor	AMD Ryzen™ 5 8500G (6C / 12T, 3.5 GHz / 5 GHz, 6 MB L2 / 16 MB L3)
Graphics	Integrated AMD Radeon™ 740M Graphics
Chipset	AMD PRO665 Chipset
Memory	1x 16GB UDIMM DDR5-5200
Memory Slots	Two DDR5 UDIMM slots, dual-channel capable
Max Memory	Up to 64GB DDR5-5200
Storage	512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support	Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each
Card Reader	None
Optical	None
Audio Chip	High Definition (HD) Audio, Realtek® ALC623-CG codec
Speakers	2Wx1
Power Supply	260W 90%
DESIGN
Keyboard	USB Traditional Keyboard, Black, German
Mouse	USB Calliope Mouse, Black
Expansion Slots	One PCIe® 3.0 x16, full-height, length ≤ 222.7mm, height ≤ 111.2mm One PCIe® 3.0 x1, full-height, (length ≤ 185mm, height ≤ 100mm) or (length ≤ 118mm, height ≤ 110mm) Three M.2 slots (one for WLAN, two for SSD)
Case Color	Black
Stand	None
Dust Filter	None
Pen	Pen Not Supported
Form Factor	Tower (13.6L)
Dimensions (WxDxH)	145 x 296 x 346 mm (5.7 x 11.7 x 13.6 inches)
Weight	Around 5.9 kg (13.0 lbs)
CONNECTIVITY
WLAN + Bluetooth	AMD Wi-Fi® 6E RZ616, 802.11ax 2x2 + BT5.3
WWAN	Non-WWAN
Ethernet	Integrated 100/1000M
Front Ports	1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with 15W charging 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
Rear Ports	4x USB-A (Hi-Speed USB / USB 2.0) 1x HDMI® 2.1 TMDS 2x DisplayPort™ 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
Optional Rear Ports (configured)	None
SECURITY & PRIVACY
Security Chip	Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader	No fingerprint reader
Physical Locks	Kensington® Security Slot™, 3 x 7 mm Padlock Loop
Smart Cable Clip	None
Chassis E-Lock	None
Chassis Intrusion Switch	Chassis Intrusion Switch
Other Security	Pluton security processor
MANAGEABILITY
System Management	Non-DASH
SERVICE
Base Warranty	1-year, Onsite
Included Upgrade	3Y Onsite upgrade from 1Y Onsite, 1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN)
CERTIFICATIONS
Green Certifications	ENERGY STAR® 8.0 EPEAT™ Gold Registered ErP Lot 3 GREENGUARD® RoHS compliant TCO Certified 9.0
Mil-Spec Test	MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
SOFTWARE
Operating System	Windows® 11 Pro, German
Bundled Software	None
ACCESSORIES
Bundled Accessories	None


Recommended Services
Best	5Y Premier Support upgrade from 1Y Premier Support (5WS1F52290)
Better	3Y Premier Support upgrade from 1Y Premier Support (5WS1B61713)
Good	2Y Premier Support upgrade from 1Y Premier Support (5WS1B61705)
