| Description |

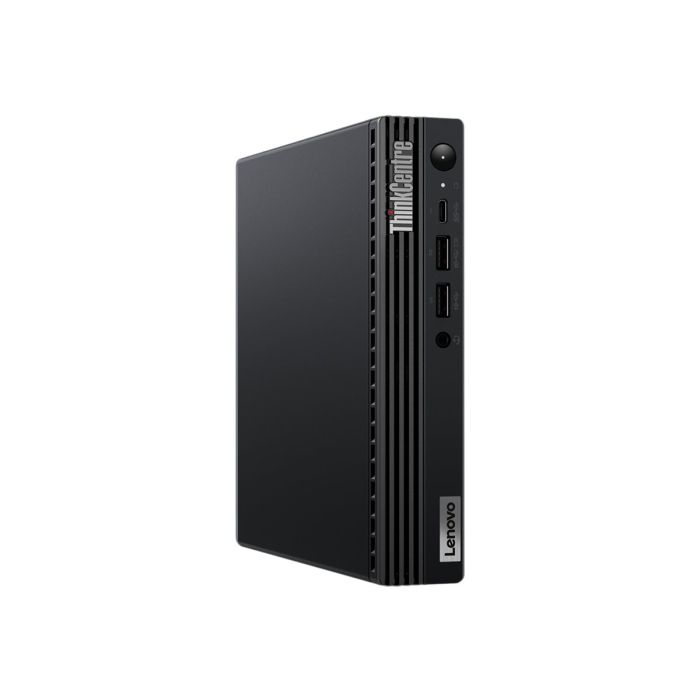

LENOVO ThinkCentre M90q Gen 5 Tiny (1L)
-
- Mehrstufige Sicherheit und Verwaltbarkeit mit bis zu Intel vPro® Enterprise
-
- Abnehmbarer Staubschutz zur Unterstützung der Wartung und zur Verlängerung des Lebenszyklus des Systems
-
- In hohem Maße konfigurierbarer kompakter PC mit anpassbaren Erweiterungssteckplätzen
-
- Ideal für das Gesundheitswesen, den Einzelhandel und die Finanzbranche mit Unterstützung für bis zu 4 Monitore
*Monitor nicht im Lieferumfang.
Technische Daten
| PERFORMANCE |
| Processor
|
Intel® Core™ i9-14900, 24C (8P + 16E) / 32T, Max Turbo up to 5.8GHz, P-core 2.0 / 5.4GHz, E-core 1.5 / 4.3GHz, 36MB
|
| Graphics |
Integrated Intel® UHD Graphics 770
|
| Chipset |
Intel® Q670 Chipset
|
| Memory |
2x 16GB SO-DIMM DDR5-5600
|
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable
|
| Max Memory
|
Up to 64GB (2x 32GB DDR5 SO-DIMM)
|
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal 2.0
|
| Storage Support
|
Up to two drives, 2x M.2 2280 SSD • M.2 2280 SSD up to 2TB
|
| Card Reader |
No card reader
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC233 codec
|
| Speakers |
Premium, 2Wx1
|
| Power Supply |
230W 89% Adapter
|
| Keyboard |
USB Traditional Keyboard, Black, German
|
| Mouse |
USB Calliope Mouse, Black
|
| Optional Bay |
2.5" HDD Bracket
|
| Expansion Slots |
- One PCIe® 4.0 x8, low-profile
- Two M.2 PCIe® Gen 4x4 slots (for SSD)
- One M.2 slot (for WLAN)
|
| Case Color |
Black
|
| Stand |
None
|
| Adapter Cage |
None
|
| Toolless Chassis Screw |
Toolless Chassis Screw
|
| Dust Filter |
None
|
| Mounting |
1x VESA Mount
|
| IO Box |
None
|
| Form Factor |
Tiny (1L)
|
| Dimensions (WxDxH)
|
- 179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches)
|
| Weight
|
|
| CONNECTIVITY |
| Ethernet |
Integrated 100/1000M
|
| WLAN + Bluetooth
|
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®
|
| Front Ports |
- 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
|
| Optional Front Ports (configured) |
None
|
| Rear Ports |
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On
- 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4a (HBR2, DSC)
- 1x Ethernet (GbE RJ-45)
|
| Optional Rear Ports (configured) |
- 1x DP
- 1x USB-C® (USB 5Gbps, Supports DP)
|
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
|
| Fingerprint Reader |
No fingerprint reader
|
| Physical Locks |
Kensington® Security Slot™, 3 x 7 mm
|
| Chassis Intrusion Switch |
Chassis Intrusion Switch
|
| MANAGEABILITY |
| System Management
|
Intel® vPro® Enterprise
|
| SERVICE |
| Base Warranty |
3-year, Onsite
|
| Included Upgrade |
1Y Premier Support from 3Y Onsite WHB (CPN)
|
| CERTIFICATIONS |
| Green Certifications
|
- ENERGY STAR® 8.0
- EPEAT™ Gold Registered
- ErP Lot 3
- RoHS compliant
- TCO Certified 9.0
|
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)
|
| SOFTWARE |
| Operating System |
Windows® 11 Pro, German
|
| Bundled Software |
None
|
| ACCESSORIES |
| Bundled Accessories |
None
|
| |
| Recommended Services |
| Best |
5Y Lenovo Support (Premier Support + KYD + International Upg) (5PS1J31179)
|
| Better |
4Y Lenovo Support (Premier Support + KYD + International Upg) (5PS1J31175)
|
| Good |
3Y Premier Support upgrade from 1Y Premier Support (5WS1C83305)
|
|
