| Description |

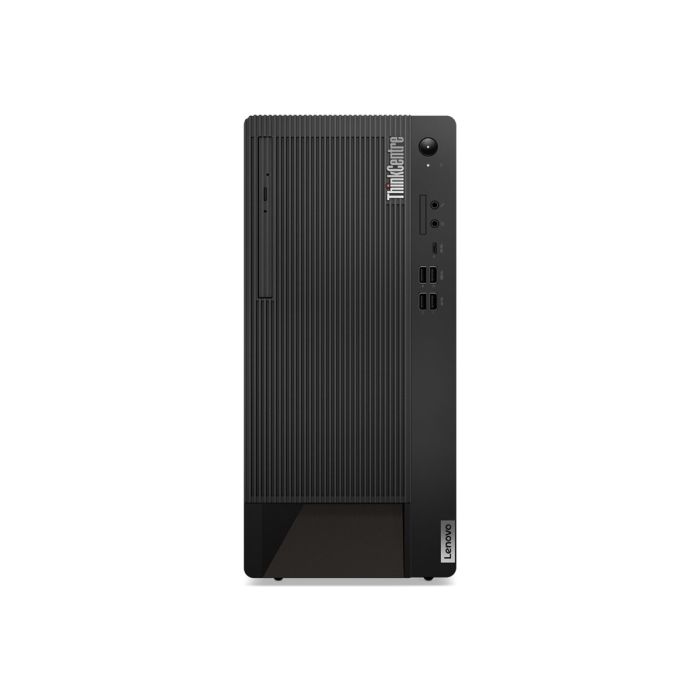

Lenovo ThinkCentre M90t Gen 5 Tower (17L)
Intel Core i7-14700 (20C, bis max. 5.4GHz, 33MB)
Intel® vPro® Enterprise
32 GB DDR5-4400
1TB SSD M.2
Intel UHD Graphics 770
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®
DVD±RW, Card Reader 3in1
Lenovo USB Traditional Keyboard + USB Calliope Mouse
Windows 11 Pro
3 Jahre Hersteller Vor-Ort Service inkl. 1. Jahr Premier Support
Smarter Tower, smartes Business
-
- integrierte KI-Funktionen für die Datenanalyse, Aufgaben im Projektmanagement
-
- Anpassbar, um die Zuverlässigkeit heute und in Zukunft zu erhöhen
-
- Lassen Sie Ihrer Kreativität freien Lauf mit der Unterstützung von Grafikupdates
-
- Verbesserte Konnektivität für eine höhere Produktivität
Technische Daten
| PERFORMANCE |
| Processor |
Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
|
| Graphics |
Integrated Intel® UHD Graphics 770
|
| Chipset |
Intel® Q670 Chipset
|
| Memory |
2x 16GB UDIMM DDR5-4400
|
| Memory Slots |
Four DDR5 UDIMM slots, dual-channel capable
|
| Max Memory
|
Up to 128GB DDR5
|
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal 2.0
|
| Storage Support
|
Up to five drives, 2x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
|
| Card Reader |
3-in-1 Card Reader
|
| Optical |
DVD±RW
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC897Q-CG codec
|
| Speakers |
2Wx1
|
| Power Supply |
500W 92%
|
| Keyboard |
USB Traditional Keyboard, Black, German
|
| Mouse |
USB Calliope Mouse, Black
|
| Optional Bay |
None
|
| Expansion Slots |
- One PCIe® 4.0 x16 (x4 signal), full-height, length ≤ 205mm, height ≤ 114.55mm
- One PCIe® 4.0 x16, full-height, length ≤ 268.5mm, height ≤ 114.55mm
- One PCIe® 3.0 x1, full-height, length ≤ 205mm, height ≤ 114.55mm
- Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color |
Black
|
| Stand |
No stand
|
| Dust Filter |
None
|
| Form Factor |
Tower (17L)
|
| Dimensions (WxDxH)
|
170 x 298 x 376 mm (6.7 x 11.7 x 14.8 inches)
|
| Weight
|
Around 6.5 kg (14.3 lbs)
|
| CONNECTIVITY |
| Ethernet |
Integrated 100/1000M
|
| WLAN + Bluetooth |
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®
|
| Front Ports |
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 15W charging
- 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x headphone / microphone combo jack (3.5mm)
- 1x microphone (3.5mm)
|
| Optional Front Ports (configured) |
1x card reader
|
| Rear Ports |
- 4x USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1x HDMI® 2.1 TMDS
- 2x DisplayPort™ 1.4a (HBR2, DSC)
- 1x Ethernet (RJ-45)
- 1x line-out (3.5mm)
|
| Optional Rear Ports (configured) |
None
|
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
|
| Fingerprint Reader |
No fingerprint reader
|
| Physical Locks |
- Kensington® Security Slot™, 3 x 7 mm
- Padlock Loop
|
| Smart Cable Clip |
None
|
| Chassis E-Lock |
None
|
| Chassis Intrusion Switch |
Chassis Intrusion Switch
|
| MANAGEABILITY |
| System Management
|
Intel® vPro® Enterprise
|
| SERVICE |
| Base Warranty |
3-year, Onsite
|
| Included Upgrade |
1Y Premier Support from 3Y Onsite WHB (CPN)
|
| CERTIFICATIONS |
| Green Certifications |
- ErP Lot 3
- GREENGUARD®
- RoHS compliant
- TCO Certified 9.0
|
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
|
| SOFTWARE |
| Operating System |
Windows® 11 Pro, German
|
| Bundled Software |
None
|
| ACCESSORIES |
| Bundled Accessories |
None
|
| |
| Recommended Services |
| Best |
5Y Lenovo Support (Premier Support + KYD + International Upg) (5PS1J31179)
|
| Better |
4Y Lenovo Support (Premier Support + KYD + International Upg) (5PS1J31175)
|
| Good |
3Y Premier Support upgrade from 1Y Premier Support (5WS1C83305)
|
|
