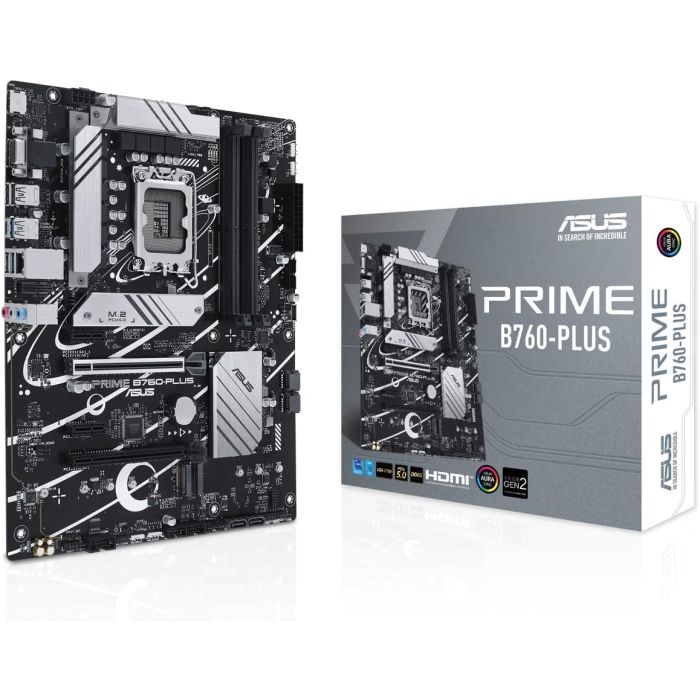

ASUS PRIME B760-PLUS
ASUS Prime B760-PLUS, ein Intel® B760 LGA 1700 ATX-Mainboard mit PCIe 5.0, drei PCIe 4.0 M.2 Steckplätzen, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) Unterstützung, Aura Sync
- Intel® LGA 1700 Sockel: Bereit für die 13. und 12. Generation der Inte® Prozessoren
- Ultraschnelle Konnektivität: PCIe 5.0, drei PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C® und Thunderbolt™ (USB4®) Header Unterstützung
- Umfassende Kühlung: VRM-Kühlkörper, M.2-Kühlkörper, PCH-Kühlkörper, Hybridlüfter-Header und Fan Xpert 2+
- Exklusive Speichertechnologie: ASUS Enhanced Memory Profile II und ASUS OptiMem II
- Aura Sync RGB-Beleuchtung Integrierte adressierbare Gen 2-Header und Aura RGB-Header für RGB-LED-Streifen, die leicht mit Aura Sync-fähiger Hardware synchronisiert werden können
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
1 x VGA port
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI™ 2.1.
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Intel® Core™ Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
* Wi-Fi module is sold separately.
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
<div style="color: #000000; background-color: #fed179; margin: 0; padding: 0; padding-left: 0px; padding-right: 0px;">Technische Daten</div>
<p> </p>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>CPU</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">Intel<sup>®</sup> Socket LGA1700 for Intel<sup>®</sup> Core™ 14<sup>th</sup> & 13<sup>th</sup> Gen Processors, Intel<sup>®</sup> Core™ 12<sup>th</sup> Gen, Pentium<sup>®</sup> Gold and Celeron<sup>®</sup> Processors*<br>Supports Intel<sup>®</sup> Turbo Boost Technology 2.0 and Intel<sup>®</sup> Turbo Boost Max Technology 3.0**<br>* Refer to <u>www.asus.com</u> for CPU support list.<br>** Intel<sup>®</sup> Turbo Boost Max Technology 3.0 support depends on the CPU types.</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Chipset</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">Intel<sup>®</sup> B760 Chipset</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Memory</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*<br>Dual Channel Memory Architecture<br>Supports Intel<sup>®</sup> Extreme Memory Profile (XMP)<br>OptiMem II<br>* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit <u>https://www.asus.com/support/</u>.<br>* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Graphics</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">1 x DisplayPort**<br>1 x VGA port<br>1 x HDMI™ port*** <br>* Graphics specifications may vary between CPU types. Please refer to <u>www.intel.com</u> for any updates.<br>** Supports max. 4K@60Hz as specified in DisplayPort 1.4.<br>*** Supports 4K@60Hz as specified in HDMI™ 2.1.</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Expansion Slots</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp"><strong>Intel<sup>®</sup> Core™ Processors (14<sup>th</sup> & 13<sup>th</sup> & 12<sup>th</sup> Gen)</strong><br>1 x PCIe 5.0 x16 slot<br><strong>Intel<sup>®</sup> B760 Chipset</strong><br>1 x PCIe 4.0 x16 slot (supports x4 mode)<br>2 x PCIe 3.0 x1 slots<br>Note: To ensure compatibility of the device installed, please refer to <u>https://www.asus.com/support/</u> for the list of supported peripherals.</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Storage</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp"><strong>Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*<br>Intel<sup>®</sup> Core™ Processors (14<sup>th</sup> & 13<sup>th</sup> & 12<sup>th</sup> Gen)</strong><br>M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)<br><strong>Intel<sup>®</sup> B760 Chipset</strong><br>M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br>M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)<br>4 x SATA 6Gb/s ports<br>* Intel<sup>®</sup> Rapid Storage Technology supports SATA RAID 0/1/5/10.</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Ethernet</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">1 x Realtek 2.5Gb Ethernet</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Wireless & Bluetooth</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">Vertical M.2 slot only (Key E, CNVi & PCIe)*<br>* Wi-Fi module is sold separately.</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>USB</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp"><strong>Rear USB (Total 6 ports)</strong><br>1 x USB 3.2 Gen 2x2 port (1 x USB Type-C<sup>®</sup>)<br>2 x USB 3.2 Gen 2 ports (2 x Type-A)<br>1 x USB 3.2 Gen 1 port (1 x Type-A)<br>2 x USB 2.0 ports (2 x Type-A)<br><strong>Front USB (Total 7 ports)</strong><br>1 x USB 3.2 Gen 1 connector (supports USB Type-C<sup>®</sup>)<br>1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports<br>2 x USB 2.0 headers support 4 additional USB 2.0 ports</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Audio</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">Realtek 7.1 Surround Sound High Definition Audio CODEC*<br>- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking<br>- Supports up to 24-Bit/192 kHz playback<br><strong>Audio Features</strong><br>- Audio Shielding<br>- Premium audio capacitors<br>- Dedicated audio PCB layers<br>* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Back Panel I/O Ports</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">1 x USB 3.2 Gen 2x2 port (1 x USB Type-C<sup>®</sup>)<br>2 x USB 3.2 Gen 2 ports (2 x Type-A)<br>1 x USB 3.2 Gen 1 port (1 x Type-A)<br>2 x USB 2.0 ports (2 x Type-A)<br>1 x DisplayPort<br>1 x VGA port<br>1 x HDMI™ port<br>1 x Vertical M.2 slot (Key E)<br>1 x Realtek 2.5Gb Ethernet port<br>3 x Audio jacks</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Internal I/O Connectors</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp"><strong>Fan and Cooling related</strong><br>1 x 4-pin CPU Fan header<br>1 x 4-pin AIO Pump header<br>3 x 4-pin Chassis Fan headers<br><strong>Power related</strong><br>1 x 24-pin Main Power connector<br>1 x 8-pin +12V Power connector<br><strong>Storage related</strong><br>3 x M.2 slots (Key M)<br>4 x SATA 6Gb/s ports<br><strong>USB</strong><br>1 x USB 3.2 Gen 1 connector (supports USB Type-C<sup>®</sup> )<br>1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports<br>2 x USB 2.0 headers support 4 additional USB 2.0 ports<br><strong>Miscellaneous</strong><br>3 x Addressable Gen 2 headers<br>1 x Aura RGB header<br>1 x Clear CMOS header<br>1 x COM Port header<br>1 x Front Panel Audio header (AAFP)<br>1 x S/PDIF Out header<br>1 x SPI TPM header (14-1pin)<br>1 x 20-3 pin System Panel header with Chassis intrude function<br>1 x Thunderbolt™ (USB4<sup>®</sup>) header</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Special Features</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp"><strong>ASUS 5X PROTECTION III</strong><br>- DIGI+ VRM<br>- LANGuard<br>- Overvoltage Protection<br>- SafeSlot Core+<br>- Stainless-Steel Back I/O<br><strong>ASUS Q-Design</strong><br>- Q-DIMM<br>- Q-LED Core<br>- Q-Slot<br><strong>ASUS Thermal Solution</strong><br>- M.2 heatsink<br>- VRM heatsink design<br><strong>ASUS EZ DIY</strong><br>- ProCool<br><strong>Aura Sync</strong><br>- Aura RGB header<br>- Addressable Gen 2 headers</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Software Features</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp"><strong>ASUS Exclusive Software</strong><br>Armoury Crate<br>- Aura Creator<br>- Aura Sync<br>- Fan Xpert 2+<br>- Power Saving<br>AI Suite 3<br>- DIGI+ VRM<br>- PC Cleaner<br>ASUS CPU-Z<br>Norton 360 Deluxe (60 Days Free Trial)<br>WinRAR<br><strong>UEFI BIOS</strong><br>ASUS EZ DIY<br>- ASUS CrashFree BIOS 3<br>- ASUS EZ Flash 3<br>- ASUS UEFI BIOS EZ Mode</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>BIOS</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">128 Mb Flash ROM, UEFI AMI BIOS</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle">Manageability</div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">WOL by PME, PXE</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Accessories</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp"><strong>Cables</strong><br>2 x SATA 6Gb/s cables<br><strong>Miscellaneous</strong><br>1 x I/O Shield<br>1 x M.2 Rubber Package<br>2 x Screw Packages for M.2 SSD<br><strong>Documentation</strong><br>1 x User guide</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Operating System</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">Windows<sup>®</sup> 11, Windows<sup>®</sup> 10 64-bit</div>
</div>
</div>
</div>
<div class="TechSpec__rowTable__1LR9D">
<div class="TechSpec__rowTableTitle__3GLj4">
<div class="rowTableTitle"><strong>Form Factor</strong></div>
</div>
<div class="rowTableItemViewBox TechSpec__rowTableItemViewBox__edVaL undefined">
<div class="TechSpec__rowTableItemBox__8tmQd">
<div class="TechSpec__rowTableItems__KYWXp">ATX Form Factor<br>12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )</div>
</div>
</div>
</div>
| Product Name | Mainb. ASUS PRIME B760-PLUS |
|---|---|
| Description | ASUS PRIME B760-PLUSASUS Prime B760-PLUS, ein Intel® B760 LGA 1700 ATX-Mainboard mit PCIe 5.0, drei PCIe 4.0 M.2 Steckplätzen, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C®, Front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) Unterstützung, Aura Sync
Technische Daten
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics
1 x DisplayPort**
1 x VGA port 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI™ 2.1. Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately. USB
Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features
ASUS Exclusive Software
Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x Screw Packages for M.2 SSD Documentation 1 x User guide Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
