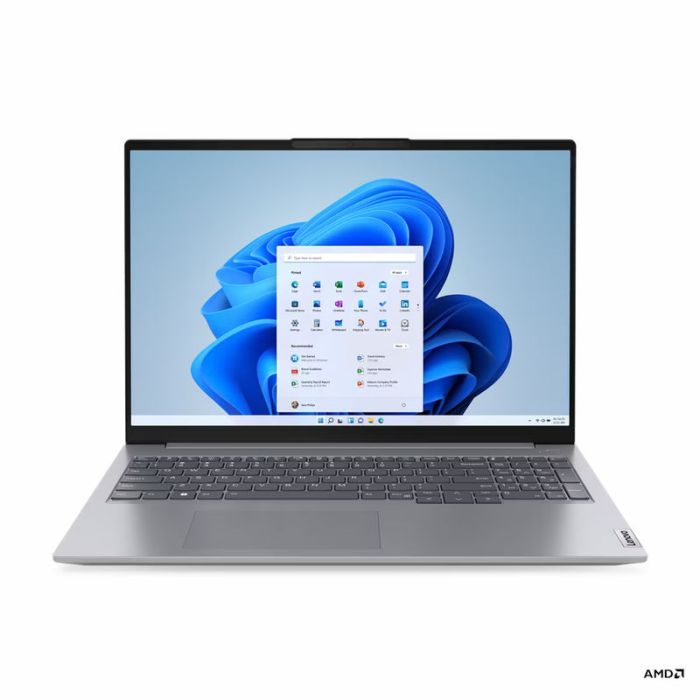

Lenovo ThinkBook 16 AMD G9 R5 32GB 1TB

Brand

Lenovo

Art.-Nr.

29936

EAN/UPC-Code: 0199273311323
Hersteller Art. Nr.: 21UT004QGE

zzgl. MwSt., und Versand

Datenblatt

Spezifikationen ThinkBook 16 AMD G9 AHP

40,6 cm (16") WUXGA 1920x1200 IPS matt, AMD Ryzen 5 220 (6C bis 4.90 GHz), 32 GB DDR5-5600, 1TB SSD M.2, AMD Radeon 740M Grafik, Wi-Fi 7 + BT5.4, G-LAN, SD CardReader, HD-Audio, HDMI 2.1, 2x USB-A, 2x USB-C (40Gb/s), FHD+IR Webcam, Fingerprint, TPM 2.0. Windows 11 Pro. Arctic Grey. 1 Jahr Premier Support. 1,7 kg. 21UT004QGE. EAN:0199273311323

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Lenovo ThinkBook 16 G9 (AMD)

16 Zoll WUXGA Ryzen 5 32GB 1TB M.2 W11P

Das Lenovo ThinkBook 16 Gen 7 Notebook von oben mit Fokus auf der Tastatur in voller Größe mit Ziffernblock.

Nahaufnahme der zweifarbigen oberen Abdeckung des Lenovo ThinkBook 16 Gen 7 Notebooks mit den Anschlüssen auf der linken Seite.

Nahaufnahme des Displays mit Videokonferenz auf dem Lenovo ThinkBook 16 Gen 7 Notebook.

Schwebendes Lenovo ThinkBook 16 Gen 7 Notebook mit fast vollständig geschlossener Abdeckung, auf der vorderen rechten Ecke stehend, um die ThinkBook ID auf der oberen Abdeckung zu zeigen.

Lenovo Premier Support (inkl.)

Überlassen Sie den IT-Support ruhig uns. Ganz gleich, ob Sie ein Business führen oder einfach nur ein persönliches Gerät suchen, mit dem Sie überall arbeiten können – mit Lenovo Premier Support erhalten Sie Zugang zu den folgenden Leistungen:
- Umfassende Hardware- und OEM-Software-Support
- Zentrale Anlaufstelle mit erfahrenen Technikern – rund um die Uhr und an allen Tagen des Jahres
- Technical Account Manager für proaktives Kundenbeziehungs- und Eskalationsmanagement
- Priorisierte Service- und Ersatzteilbereitstellung

Technische Daten

PERFORMANCE
Processor	AMD Ryzen™ 5 220 (6C / 12T, 3.2 / 4.9GHz, 6MB L2 / 16MB L3)
AI PC Category	Non-AI PC
NPU	None
Graphics	Integrated AMD Radeon™ 740M Graphics
Chipset	AMD SoC Platform
Memory	2x 16GB SODIMM DDR5-5600
Memory Slots	Two DDR5 SODIMM slots, dual-channel capable
Max Memory	Up to 64GB DDR5-5600
Storage	1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot	Two M.2 slots • One M.2 2242 PCIe® 4.0 x4 slot • One M.2 2280 PCIe® 4.0 x4 slot
Max Storage Support	Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 2TB • M.2 2280 SSD up to 2TB
Card Reader	SD Card Reader
Audio Chip	High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers	Stereo speakers, 2W x2, Dolby Audio™
Microphone	2x, Array
Camera	FHD 1080p + IR Hybrid with Privacy Shutter
Battery	48Wh
Power Adapter	65W USB-C® (3-pin)
Special Features	Modern Standby
DESIGN
Display	16" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz
Touchscreen	None
Screen-to-Body Ratio	90%
Color Calibration	No Color Calibration
Pen	Pen Not Supported
Keyboard	Backlit, German
Touchpad	Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)	356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)
Weight	Starting at 1.7 kg (3.75 lbs)
Case Color	Arctic Grey
Case Material	Aluminium (Top), PC-ABS (Bottom)
Surface Treatment	Anodizing Sandblasting (Top), Texture (Bottom)
SOFTWARE
Operating System	Windows® 11 Pro, German
Bundled Software	Office Trial
CONNECTIVITY
WLAN + Bluetooth	Wi-Fi® 7, 802.11be 2x2 + BT5.4
WWAN	WWAN Not Supported
Ethernet	100/1000M (RJ-45)
Standard Ports	1x USB-A (USB 5Gbps), Always On 1x USB-A (USB 5Gbps) 2x USB-C® (USB4® 40Gbps), with USB PD 45-65W and DisplayPort™ 1.4a 1x HDMI® 2.1, up to 4K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x SD card reader
Docking	Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for ThinkBook® 16 G9 AHP
SECURITY & PRIVACY
Security Chip	Discrete TPM 2.0 Enabled
Physical Locks	Kensington Nano Security Slot™, 2.5 x 6 mm
Fingerprint Reader	Touch Style, Match-on-Chip, Integrated in Power Button
Other Security	Camera privacy shutter IR camera for Windows® Hello (facial recognition)
SERVICE
Base Warranty	1-year, Courier or Carry-in
Included Upgrade	1Y Premier WHB (CPN)
ACCESSORIES
Bundled Accessories	None
CERTIFICATIONS
Green Certifications	ENERGY STAR® 9.0 EPEAT™ Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10
Mil-Spec Test	MIL-STD-810H military test passed
Other Certifications	TÜV Rheinland® Low Blue Light (Software Solution)
