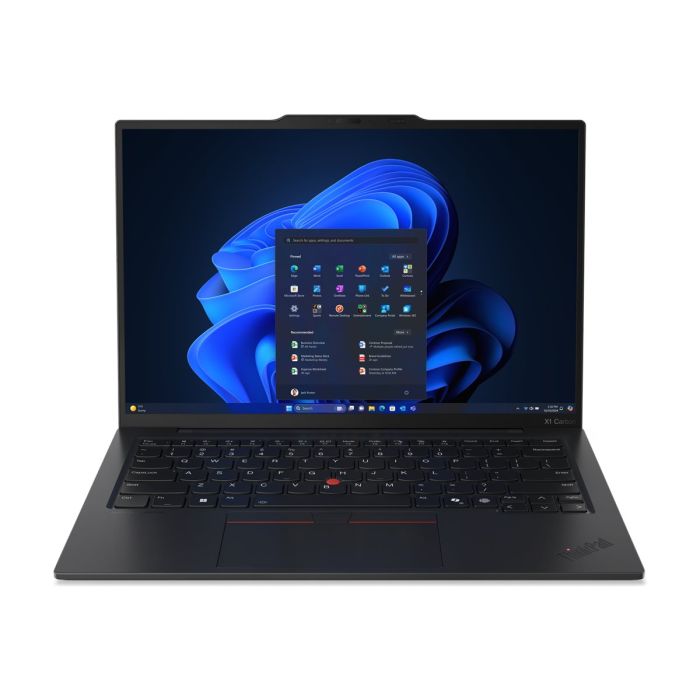

Lenovo X1 Carbon G13 14'' U5 16GB 512

Brand

Lenovo LENOVO
Art.-Nr.
29790
EAN/UPC-Code: 0198158030526
Hersteller Art. Nr.: 21NX008PGE

Sofort versandfertig: Bei Bestellungen an Werktagen bis 14:30 Uhr erfolgt der Versand noch am gleichen Tag.

zzgl. MwSt., und Versand
35,6 cm (14") WUXGA 1920x1200 Low Power,Intel U5 225U (12C, bis 4,8 GHz, 12MB), 16GB LPDDR5x-8400, 512GB SSD M.2, Intel Graphics, Wi-Fi 6E, 11ax 2x2 + BT5.3, 1xHDMI 2.1, 2xUSB-A, 2xUSB-C (2x DP), HD AUdio, FHD+IR Webcam, FingerPrint, Windows 11 Pro, Carbon Fiber, Black, Paint, Haptic Trackpad. 3 Jahre Premier Support. 1.06 kg. 21NX008PGE. EAN:0198158030526

ThinkPad X1 Carbon Gen 13 Aura Edition

14" WUXGA Intel Core Ultra U5 16GB 512GB W11P



    • - 14'' KI-PC fürs Business – mit Intel®

    • - Lenovo Aura Edition Funktionen für optimierte Produktivität und tägliches Erlebnis

    • - Unser dünnstes und leichtestes 14'' ThinkPad X1 wiegt weniger als 1 kg

    • - Superlange Akkulaufzeit, der Akku kann vom Kunden ersetzt werden, um den Lebenszyklus zu verlängern

    • - Niedrigster CO₂-Fußabdruck des X1 bisher





Technische Daten



PERFORMANCE
Processor
Intel® Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category
AI PC

NPU
Integrated Intel® AI Boost, up to 12 TOPS
Graphics
Integrated Intel® Graphics
Chipset
Intel® SoC Platform
Memory
16GB Soldered LPDDR5x-8400

Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Max Memory
16GB soldered memory, not upgradable
Storage
512GB SSD M.2 2280 PCIe® 5.0x4 Performance NVMe® Opal 2.0
Storage Slot
Models with U series processor: one M.2 2280 PCIe® 4.0 x4 slot
Max Storage Support

One drive, up to 2TB M.2 2280 SSD
Card Reader
None
Audio Chip
Models with U or H series processor: High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos®
Microphone
2x, 360°
Camera
FHD 1080p + IR Discrete with Privacy Shutter
Battery
57Wh
Power Adapter
65W USB-C® Slim GaN (3-pin)
DESIGN
Display
14" WUXGA (1920x1200) IPS 500nits Anti-glare, 100% sRGB, 60Hz, Low Power

Touchscreen
None
Screen-to-Body Ratio
89.2%
Pen
Pen Not Supported
Keyboard
Backlit, German
Touchpad
Haptic Touchpad
Dimensions (WxDxH)

312.80 x 214.75 x 8.38/14.77 (front/rear), 17.95 (maximum) mm; 12.31 x 8.45 x 0.33/0.58 (front/rear), 0.71 (maximum)inches
Weight

Starting at 1006 g (2.22 lbs)
Case Color
Black, Paint
Case Material
Carbon Fiber (Top), Aluminium (Bottom)
SOFTWARE
Operating System
Windows® 11 Pro, German
Bundled Software
Intel® Connectivity Performance Suite
CONNECTIVITY
WLAN + Bluetooth
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3

WWAN
WWAN Upgradable to 4G or 5G
SIM Card
None
Ethernet
No Onboard Ethernet

NFC
None
Standard Ports
  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
  • 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
  • 1x HDMI® 2.1, up to 4K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)
1x Nano-SIM Card Slot
Docking
Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 13 Aura Edition
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0 Enabled
Physical Locks
Kensington® Nano Security Slot, 2.5 x 6 mm
Smart Card Reader
None
Fingerprint Reader
Touch Style, Match-on-Chip, in Keyboard Key
Other Security
  • Camera privacy shutter
  • Ultrasonic Human Presence Detection
  • ThinkShield
  • IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management
Non-vPro®
SERVICE
Base Warranty
3-year, Courier or Carry-in
Included Upgrade
3Y Premier Support WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR® 9.0
  • EPEAT™ Gold Registered

  • ErP Lot 6/26
  • RoHS compliant
  • TCO Certified 10.0
Mil-Spec Test
MIL-STD-810H military test passed
Other Certifications
  • Eyesafe® Certified 2.0
  • Intel® Evo™ Platform
